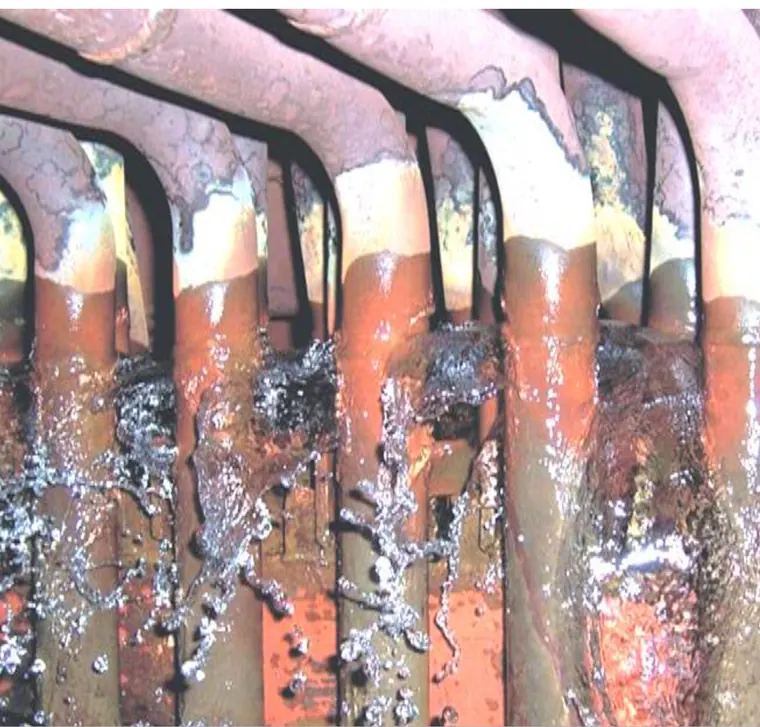

Boiler Tube Failure Analysis: A Complete Investigation Guide for Power Plants

  • 2 days ago
  • 9 min read

Boiler tube failure analysis remains one of the most critical challenges facing India's power sector. When a boiler tube fails, the consequences extend far beyond immediate production losses. Forced outages can cost thermal power plants lakhs of rupees per hour, disrupt energy supply chains, and trigger cascading maintenance emergencies that impact plant availability for weeks.


TCR Engineering has investigated over 2,500 boiler tube failures across sub-critical and supercritical boilers in India, working with major power producers including Adani Power, Tata Power, Vedanta, and Reliance Industries. The company's systematic approach to root cause analysis has helped prevent recurring failures and extend equipment life across the country's thermal power infrastructure.



Why Boiler Tube Failures Happen


The harsh operating environment inside fossil-fired boilers and HRSGs creates multiple pathways to tube failure. High temperatures, aggressive water chemistry, combustion byproducts, and mechanical stresses combine to degrade tube materials over time.


Common causes include:

  • Water chemistry excursions that attack tube metallurgy

  • Localized overheating from flow restrictions or flame impingement

  • Fireside corrosion from fuel contaminants

  • Mechanical damage during fabrication or installation

  • Long-term creep from sustained high-temperature operation

  • Erosion from fly ash or steam cutting


"Most boiler tube failures don't happen overnight," explains Paresh Haribhakti, Managing Director of TCR Advanced Engineering and co-author of the ASM International handbook on boiler tube failures. "They develop through progressive damage mechanisms that leave metallurgical fingerprints. A proper failure investigation reads these signs to identify not just what failed, but why it failed and how to prevent it from happening again."


The Cost of Getting It Wrong


When a tube failure forces an unplanned shutdown, plant teams face immense pressure to restore generation quickly. This urgency sometimes leads to hasty conclusions about the failure cause.


The risks of incomplete analysis:

  • Replacing the failed tube without addressing the root cause

  • Missing similar damage developing in adjacent tubes

  • Implementing ineffective corrective measures

  • Experiencing repeat failures in the same location

  • Gradual degradation spreading to other boiler zones


A proper boiler tube failure analysis investigation prevents these costly mistakes by identifying the actual damage mechanism and providing actionable recommendations based on metallurgical evidence.


Damage Mechanisms That Cause Boiler Tube Failures


Understanding the specific mechanism responsible for tube failure is essential for effective prevention. Each damage type leaves distinct visual and metallurgical signatures.


Waterside Damage Mechanisms


Caustic gouging occurs when alkaline salts concentrate under high heat flux conditions. This localized corrosion typically appears at tube bends or areas with disrupted water flow. Proper water chemistry control and attention to design details can mitigate this mechanism.


Flow accelerated corrosion (FAC) involves repeated formation and removal of the protective oxide layer on carbon steel tubes. Flow velocity, pH levels, dissolved oxygen, temperature, and geometry all influence FAC rates. This mechanism commonly affects economizers, feedwater piping, and other pre-boiler components.


Stress-assisted corrosion requires both mechanical stress and a corrosive environment. Dissolved oxygen and pH excursions are major contributors. Cracks frequently initiate at attachments where residual stresses concentrate.


Oxygen pitting creates severe localized attack, especially in areas where water can't easily drain during shutdowns. These stagnant zones remain vulnerable when air contacts wet surfaces.


Fireside Damage Mechanisms


Fireside corrosion develops when sodium and vanadium in fuel combine with sulfur compounds during combustion. This creates low-melting-point salts that aggressively attack tube surfaces at elevated temperatures. The damage appears as thinning or punctures on the fire-exposed side.


High-temperature corrosion accelerates when boilers operate in reducing atmospheres or when unburned coal particles release sulfur and chloride compounds. Proper combustion control and fuel quality management are critical prevention measures.


Temperature-Related Damage


Short-term overheating produces rapid, localized damage with characteristic bulging and thick-lipped ruptures. Causes include design issues, secondary combustion, combustion zone shifting, or flow blockages.


Long-term creep occurs when tubes operate at high temperatures for extended periods. The material slowly deforms under stress below its yield strength. Scale deposition, metallurgical condition, and operating parameters all influence creep life.


Thermal fatigue results from cyclic temperature changes that create expansion stresses. Repeated startups, load swings, or operational transients can initiate cracking that propagates through the tube wall.


Mechanical Damage Mechanisms


Erosion involves physical material removal from high-velocity gases, liquids, or solid particles. Fly ash erosion commonly affects tube banks in specific flow patterns.


Fatigue cracking develops from repetitive mechanical stresses due to vibration or pressure fluctuations. The failure surface shows characteristic beach marks or striations visible under microscopic examination.


TCR Engineering's Systematic Investigation Approach

TCR Engineering follows a comprehensive methodology documented in their quality control procedures and refined through over 1,500 investigations. This systematic process ensures that critical evidence isn't overlooked and that conclusions rest on solid metallurgical foundations.


Background Data Collection

Before any laboratory work begins, TCR Engineering gathers detailed information about the failure context:

  • Operating temperature and pressure conditions

  • Water chemistry history and treatment practices

  • Fuel analysis and combustion parameters

  • Failure location within the boiler system

  • Previous failure history at the same or similar locations

  • Recent operational changes or maintenance activities

This contextual information guides the investigation strategy and helps interpret laboratory findings.


Visual Examination and Documentation

Initial visual examination often reveals the most important clues about failure mechanism. Experienced metallurgists examine:

  • Failure morphology (flat, zig-zag, fishmouth, window opening, burst, puncture)

  • Rupture edge characteristics (thin lips, thick lips, bulging)

  • Scale deposits on both internal and external surfaces

  • Discoloration patterns indicating temperature excursions

  • Weld quality and heat-affected zone condition

All observations are photographed with proper scale and orientation markers to preserve evidence.


Non-Destructive Testing

Before sectioning samples, NDT techniques detect surface and subsurface flaws:

  • Magnetic particle inspection for surface cracks

  • Dye penetrant testing on accessible surfaces

  • Ultrasonic thickness measurements to map wall loss

  • Dimensional measurements of rupture geometry


Chemical Analysis

Confirming tube material composition is essential for assessing whether the correct alloy was installed and whether it meets specification requirements. TCR Engineering uses optical emission spectroscopy and wet chemical methods to verify:

  • Base metal chemistry

  • Weld metal composition if failures occur at welds

  • Comparison against applicable ASTM, ASME, or manufacturer specifications


Stereo Microscopy

Low-magnification examination under stereo microscopes reveals failure surface features that guide subsequent analysis:

  • Ductile versus brittle fracture characteristics

  • Crack initiation sites and propagation paths

  • Oxide scale morphology and layering

  • Evidence of erosion, corrosion, or mechanical damage

Based on these findings, specific areas are selected for scanning electron microscopy.


Scanning Electron Microscopy and EDS Analysis

SEM provides high-magnification views of fracture surfaces and damage initiation zones. Energy dispersive X-ray spectroscopy (EDS) identifies elemental composition of:

  • Corrosion products and scale deposits

  • Crack tip regions

  • Inclusions or precipitates

  • External deposits from fuel contaminants

This combination reveals the chemical environment that contributed to failure.


Metallographic Examination

Careful preparation of metallograp hic samples allows assessment of the tube's internal condition:

  • Microstructure changes from temperature exposure

  • Oxide scale thickness and adherence

  • Decarburization or carburization

  • Creep damage indicators like void formation

  • Grain boundary attack or intergranular penetration

  • Heat treatment adequacy

Samples are typically prepared from multiple locations: the failure zone, nearby areas showing early damage, and unaffected reference sections for comparison.


Hardness Testing

Both macro-hardness and micro-hardness measurements provide information about:

  • Material condition relative to specifications

  • Softening from thermal exposure

  • Hardened zones from improper heat treatment

  • Gradients near failure locations

Micro-hardness traverses across tube walls can reveal damage confined to thin layers near surfaces.


Root Cause Determination and Recommendations

After correlating all test results with operational data, TCR Engineering's team of metallurgists determines the primary failure mechanism and contributing factors. The investigation report explains the failure sequence and provides specific recommendations to prevent recurrence.


The Role of the ASM International Handbook


TCR Engineering's technical expertise gained international recognition when Paresh Haribhakti and colleagues contributed a chapter on boiler failures to ASM Handbook Volume 11A: Analysis and Prevention of Component and Equipment Failures.



Published by ASM International and distributed across more than 140 countries, this technical reference serves failure analysts, engineers, and maintenance professionals worldwide. The handbook's inclusion of TCR Engineering's work reflects the global relevance of their investigation methodologies and practical experience with Indian power plant conditions.


The team also authored "Failure Investigation of Boiler Tubes: A Comprehensive Approach," published by ASM International. This book covers material selection, damage mechanisms, characterization techniques, and detailed case studies based on actual field failures.



Key Investigation Techniques for Accurate Diagnosis


Sample Selection and Preservation


Proper sampling preserves evidence while providing material for various tests. TCR Engineering's procedures specify:

  • Avoiding heat or mechanical damage during cutting

  • Retaining failure edges and fracture surfaces intact

  • Collecting samples from damaged, transitional, and unaffected zones

  • Preserving deposits and scales for analysis

  • Documenting sample orientation and location


Microstructural Interpretation

Reading microstructures requires experience with boiler tube materials and damage mechanisms. Key observations include:

  • Ferrite and pearlite distribution in carbon steels

  • Carbide morphology and distribution in low-alloy steels

  • Grain size and shape changes from thermal exposure

  • Oxide penetration along grain boundaries

  • Creep voids at grain boundaries or in heat-affected zones

  • Phase transformations indicating temperature excursions


Correlating Multiple Evidence Types


The most reliable conclusions emerge when multiple lines of evidence point to the same mechanism:

  • Visual features consistent with specific damage types

  • Microstructure characteristic of the operating environment

  • Chemical composition of deposits matching fuel or water chemistry

  • Fracture surface morphology typical of the failure mode

  • Hardness and mechanical properties aligned with damage mechanism


When evidence conflicts, experienced investigators re-examine assumptions and gather additional data.


Preventing Recurring Failures


Investigation value comes from preventing future problems, not just explaining past ones. TCR Engineering's recommendations typically address:


Operational adjustments like water chemistry modifications, combustion tuning, or load cycling practices that reduce damage rates.


Maintenance improvements including inspection frequencies, cleaning procedures, or water treatment practices.


Material upgrades where higher-alloy tubes or improved heat treatments can better resist the service environment.


Design modifications to address inherent vulnerabilities like flow restrictions, flame impingement, or inadequate support systems.


Monitoring programs to detect early-stage damage before failures occur through techniques like ultrasonic thickness surveys or visual inspections during outages.


When to Conduct a Boiler Tube Failure Analysis Investigation


Not every tube failure requires comprehensive metallurgical investigation, but certain situations demand thorough analysis:

  • First-time failures in a particular location or zone

  • Repeat failures after implementing corrective measures

  • Multiple simultaneous failures suggesting systemic issues

  • Failures during critical operating periods

  • Unexpected failure modes or unusual damage patterns

  • Failures in recently installed or modified equipment

  • When failure cause is disputed or unclear


Early investigation of new failure modes can prevent widespread damage as the mechanism propagates to other tubes.


TCR Engineering's Track Record in Power Plant Investigations


With over 500 remaining life assessment studies and 2,500+ boiler tube failure investigations completed, TCR Engineering has built extensive databases of damage patterns, failure mechanisms, and effective corrective measures specific to Indian operating conditions.


The company's laboratory in Vadodara, India houses advanced metallurgical equipment including scanning electron microscopes, optical emission spectrometers, mechanical testing systems, and complete metallography facilities. This technical infrastructure supports comprehensive investigations without reliance on overseas laboratories.


Long-term relationships with major power producers have allowed TCR Engineering to track the effectiveness of recommendations and refine prevention strategies based on actual field results.


The Future of Boiler Tube Failure Analysis


As India's power sector transitions to supercritical and ultra-supercritical technology, failure investigation requires deeper expertise in advanced materials and more severe operating conditions. Higher steam temperatures and pressures accelerate damage mechanisms and introduce new failure modes.


Remaining life assessment becomes increasingly important for aging boilers, where accumulated damage may not yet cause failures but reduces safety margins. Advanced NDE techniques, material modeling, and fitness-for-service evaluations complement traditional failure investigations.


TCR Engineering continues to invest in technical capabilities and training to address these evolving challenges in boiler tube failure analysis.


Frequently Asked Questions About Boiler Tube Failure Analysis

Q: How long does a typical boiler tube failure investigation take?

Most investigations require 2-4 weeks from sample receipt to final report, depending on the complexity of the damage mechanism and the number of samples examined. Rush service is available for critical situations, though thorough analysis shouldn't be compromised for speed.


Q: What information should we provide with failed tube samples?

Include photographs of the failure in situ, exact location within the boiler, operating conditions before failure, water chemistry data, fuel analysis, and any history of previous failures in that area. More context enables more accurate diagnosis.


Q: Can you investigate failures without removing large sections of tubing?

Yes. Small samples strategically selected from the failure area, nearby regions, and unaffected zones typically provide sufficient material for comprehensive analysis. The investigation procedure specifies minimum sample requirements.


Q: How do we know if the recommendations will actually prevent recurring failures?

Recommendations are based on the identified damage mechanism and proven mitigation strategies. TCR Engineering's experience with over 1,500 investigations provides data on which corrective measures effectively prevent recurrence for each failure type.


Q: Do you investigate only boiler tubes, or other power plant components as well?

While boiler tubes represent the majority of investigations, TCR Engineering analyzes failures in headers, superheaters, economizers, reheaters, piping systems, and other pressure parts using similar metallurgical investigation techniques.


Q: What is the difference between failure analysis and remaining life assessment?

Failure analysis investigates components that have already failed to determine why. Remaining life assessment examines components still in service to predict how much longer they can operate safely before failure risk becomes unacceptable.


Q: How do material costs factor into your recommendations?

Recommendations consider both technical effectiveness and practical implementation. When material upgrades are suggested, the analysis weighs replacement costs against the expected frequency of failures with current materials and the cost of forced outages.


Q: Can investigations determine if tube failures resulted from manufacturing defects versus service conditions?

Yes. Metallurgical analysis can distinguish material defects, fabrication issues, improper heat treatment, and welding problems from damage that developed during service operation. This distinction is often critical for warranty claims.
