Cyclic Load Testing of Cargo Strap Belts at TCR

Cargo strap belts—commonly referred to as lashing straps, tie-downs, or ratchet straps—are critical tools used across transportation, logistics, construction, and manufacturing industries. Designed to secure loads during transport or lifting, these straps must perform reliably under varying and often harsh conditions. While static tests such as Minimum Breaking Load (MBL) or Working Load Limit (WLL) offer insights into a strap’s peak strength, they don’t reveal how the strap will behave under prolonged or repetitive loading.

At TCR, we go a step further by performing Cyclic Load Testing—a rigorous fatigue assessment that simulates real-world usage patterns and evaluates a strap’s long-term performance.

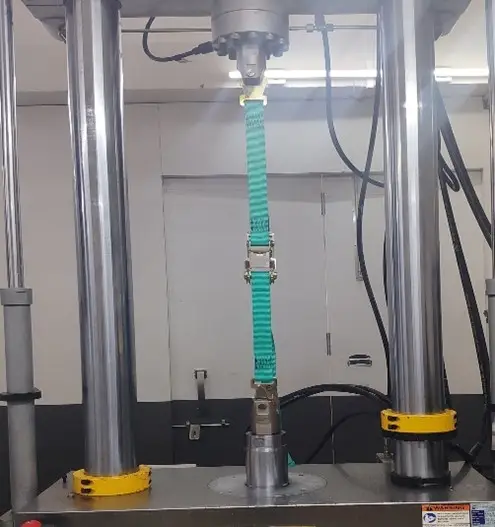

Ensure cargo strap safety with TCR’s cyclic load testing—simulate real-world stress, verify durability, and prevent fatigue failures.

Cyclic load testing subjects a cargo strap assembly (including webbing, stitching, and hardware) to repeated loading and unloading cycles between defined minimum and maximum force values, under controlled frequency and cycle count. The objective is to mimic the actual fatigue conditions a strap undergoes in the field—conditions that static testing simply cannot replicate.

Typical cyclic load testing parameters used at TCR include:

• Frequency: 1.2 Hz

• Upper Load Limit: 5.92 kN

• Lower Load Limit: 0.1 kN

• Residual Load: 1.4 kN

• Effective Strap Length: 1250 mm

• Cycles: 100 (or as specified by the client)

Post-test evaluation includes checking for permanent elongation (typically not exceeding 2–3% unless otherwise specified) and identifying signs of fatigue damage in webbing, stitching, or hardware.

When conducting cyclic load tests on cargo strap belts, TCR ensures precision and consistency through the following key practices:

1. Controlled Span Length

We maintain a total test span of 820 mm between the crossheads of our Universal Testing Machine (UTM). This controlled setup ensures standardized testing across multiple samples and maintains compliance with client or regulatory specifications.

2. Custom Fixtures

We design and implement custom fixtures to grip the strap assembly without slippage or localized stress concentrations. These fixtures are based on proven designs and adapted to accommodate the strap’s construction, width, and hardware attachments.

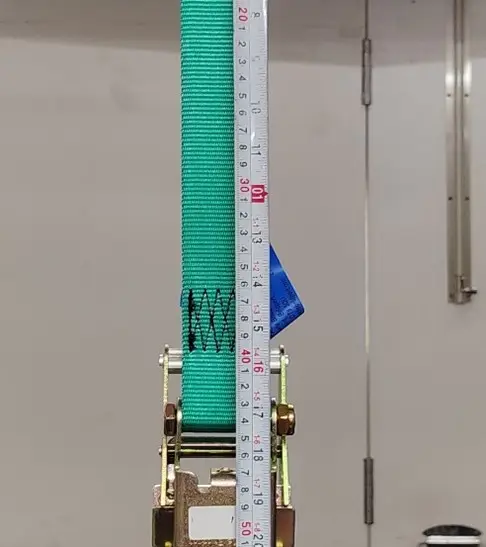

Ensuring Safety and Durability: Cyclic Load Testing of Cargo Strap Belts at TCR

Why Cyclic Load Testing is Crucial

✅ Fatigue Failure Prevention

Even strong materials like polyester or nylon can degrade under repeated stress cycles. Cyclic testing helps detect vulnerabilities such as fiber degradation, stitching fatigue, or hardware deformation long before a failure occurs.

✅ Real-World Simulation

Static load tests provide a snapshot. Cyclic testing tells the story of the strap’s entire lifespan—through every bounce, shock, or movement encountered during actual use.

✅ Whole Assembly Validation

This test doesn’t just evaluate the strap material. It simultaneously examines:

• Webbing: For fiber fatigue, permanent elongation, and abrasion.

• Stitching: For unraveling, broken threads, and reduced integrity.

• Hardware: For wear, bending, crack initiation, and mechanical failure.

✅ Service Life Estimation

Cyclic load testing enables manufacturers and users to better estimate the product’s fatigue life, supporting more accurate maintenance and replacement schedules.

✅ Safety and Compliance

Straps used in mission-critical applications—such as aerospace or automotive logistics—demand the highest levels of reliability. Cyclic testing provides the data required to meet stringent safety standards.

Industry Applications of Cyclic Load Testing

• Transportation & Logistics: For straps used on trucks, ships, and rail that face constant vibration and load shifts.

• Construction & Rigging: Ensuring reliability during repetitive material handling or temporary structural support.

• Manufacturing: In production lines where components are frequently secured and released.

• Warehousing: Verifying strap performance during regular loading/unloading of goods.

• Aerospace & Automotive: Securing sensitive components during assembly or transit.

TCR’s Edge: Trusted Testing Expertise

TCR’s material testing laboratories are equipped with high-precision Universal Testing Machines, custom-designed fixtures, and expert operators who specialize in fatigue testing methodologies. Our facilities are routinely chosen by clients across Saudi Arabia, India, Sri Lanka, and the GCC for compliance testing, quality validation, and failure analysis.

We take pride in helping industries move from mere compliance to confidence—ensuring their safety-critical equipment like cargo straps not only pass standards but excel in real-world performance.

Conclusion & Recommendations

Cyclic load testing is an advanced but essential method for verifying the durability and reliability of cargo strap belts. By simulating real operational conditions, it provides actionable data on fatigue life, elongation limits, and structural integrity—factors that are vital for preventing unexpected failures.

Recommendations:

• Manufacturers: Include cyclic testing in R&D and QA programs to enhance product credibility.

• Procurement Managers: Request fatigue test reports, especially for high-load or high-frequency usage scenarios.

• End Users: Don’t rely solely on visual inspections. Understand that fatigue damage can be invisible and cumulative.

Want to Test Your Cargo Straps for Fatigue Resistance?

Get in touch with Mr. Avinash Tambewagh, Technical Head of TCR today to schedule a cyclic load test or learn more about our advanced mechanical testing services. Your safety and reliability are only as strong as your weakest strap—make sure it’s tested to withstand the load.
