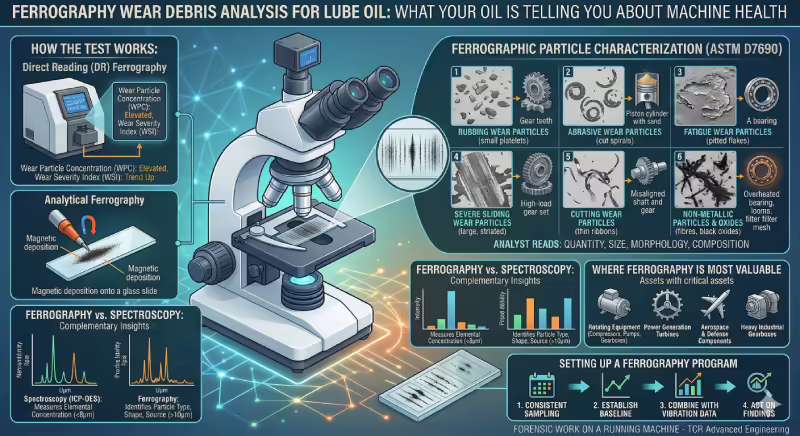

Ferrography Wear Debris Analysis for Lube Oil

Most rotating equipment failures don't happen without warning. The warning is already there, suspended in the lube oil, invisible to the naked eye but readable to anyone who knows what to look for.

Ferrography is that reading tool. It is one of the most precise condition monitoring techniques available for industrial machinery, and it remains underused in India relative to its diagnostic value. For plant engineers managing compressors, gearboxes, turbines, and pumps in oil and gas, petrochemical, and power generation facilities, understanding what ferrography can and cannot tell you is worth the investment of attention.

This article covers what ferrography wear debris analysis is, how it works, what it detects, and when you should be using it.

What Is Ferrography and Why Does It Matter?

The objective of ferrography is to diagnose the operational condition of a machine based on the quantity and type of particles observed in the oil. After break-in, normally running machines exhibit consistent particle concentration and particle types from sample to sample. An increase in particle concentration, accompanied by an increase in size and severity of particle types, indicates the initiation of a fault.

In plain terms: healthy machines generate small, consistent wear particles. Machines in trouble generate more particles, larger particles, and particles with different shapes. Ferrography reads those differences before the machine fails.

Ferrographic analysis prevents catastrophic equipment failure through timely and accurate prediction of abnormal or critical machine wear. It saves time and money by identifying lubricant contamination problems before costly damages occur, and by helping maintenance personnel monitor component deterioration to get maximum use out of a wearing component without risking secondary damage.

This is not routine oil analysis. Ferrography goes deeper than spectroscopy or particle count alone. It looks at the shape, size, composition, and surface texture of the particles themselves, which is what makes it possible to identify not just that something is wearing, but what is wearing and how.

How the Test Works: Direct Reading and Analytical Ferrography

There are two approaches, and they work best together.

Direct Reading Ferrography (DR Ferrography) gives a fast, quantitative measure of ferrous wear particle concentration in the oil. The DR Ferrograph separates out particles having positive magnetic susceptibility by means of a high-gradient magnetic field. Magnetic separation is nearly 100% effective for ferromagnetic particles larger than 0.1 micrometers. The output is a Wear Particle Concentration (WPC) and a Wear Severity Index (WSI). These numbers, tracked over time, establish a baseline and flag when something is changing.

When the DR numbers move outside trend, that is when Analytical Ferrography takes over.

Analytical Ferrography is the detailed examination. It works by separating solid debris from oil and depositing ferrous and non-ferrous particles onto a slide in distinct patterns determined by a magnetic field. The slide is then examined under a microscope to identify particle characteristics that can indicate abnormal wear conditions and their potential causes. Deposition is on a glass substrate so that particles may be examined using transmitted light as well as reflected light, allowing particle types to be identified that cannot be seen with reflected light alone.

The ferrogram slide produced by this process becomes a permanent, photographic record of the machine's wear state at that point in time.

What Wear Particles Reveal

The six wear particle categories standardised under ASTM D7690 each tell a different story.

Rubbing wear particles are flat platelets, typically under 5 microns, with smooth surfaces. These are normal. Every lubricated machine generates them during steady-state operation.

Abrasive wear particles are cut-shaped or spiral curls. They form when a hard surface penetrates a softer one, either from a misaligned or fractured component or from hard contaminants already in the oil. Their presence at elevated concentration signals an active abrasion problem.

Fatigue wear particles are flake-like and often pitted on the surface. They are associated with rolling contact fatigue in bearings and gears. A rise in fatigue particles frequently precedes spalling failure in rolling element bearings.

Severe sliding wear particles are large, often with striations. These form under high-load or boundary lubrication conditions where the oil film has partially broken down.

Cutting wear particles are thin, elongated ribbons. They typically mean something hard is cutting into a softer surface, a strong indicator of misalignment or a hard contaminant trapped between surfaces.

Non-metallic particles include oxides, fibres, and environmental contaminants. Black oxides specifically can indicate lubricant starvation or overheating.

The analyst's job is to read all of this together: concentration, size distribution, morphology, and composition. It is qualitative work that requires real expertise. The standard provides a framework, but the interpretation still depends on the analyst's knowledge of wear failure modes.

Paresh Haribhakti, Managing Director of TCR Advanced Engineering and author of Failure Investigation of Boiler Tubes published by ASM International, puts it this way: "Ferrography is not just a lab test. It is forensic work on a running machine. The particles in that oil slide are direct evidence of what the machine is experiencing inside, and if you know how to read them, you can act before the damage becomes irreversible."

Where Ferrography Is Most Valuable

Ferrography is most useful for equipment where internal wear is difficult or impossible to inspect visually while running, and where an unplanned shutdown is expensive or dangerous. That covers a wide range of assets.

Rotating equipment in refineries and petrochemical plants — centrifugal compressors, process pumps, gearboxes, and turbines. Unplanned failures in these assets carry both production loss and safety risk. A sampling programme that catches accelerated wear six weeks before failure converts a crisis into a planned maintenance event.

Power generation turbines and associated gearboxes — where bearing and gear wear under variable load is a known risk. In the wind energy sector, maintenance costs account for about 30% of the total cost of energy produced, and failures in gearboxes and bearing components account for about 13% of total maintenance costs. The economics of predictive monitoring are straightforward.

Defence and aerospace applications — where the consequences of component failure are severe and ferrography has been used as a diagnostic tool since its development for military aircraft programmes in the 1970s.

Heavy industrial equipment — gearboxes in steel mills, cement plants, and mining operations, where the cost of a crown wheel or pinion replacement is significant and the warning signs are visible in the oil weeks before failure.

The real value compounds when ferrography is run as a programme, not a one-off test. When used as trend analysis, accelerated wear of critical equipment is accurately detected and correctly diagnosed for planned maintenance before production and safety are jeopardised. A single sample gives you a snapshot. Sequential samples over months give you a trend line, and trend lines are what allow confident maintenance decisions.

Ferrography vs. Spectroscopy: Understanding the Difference

Spectroscopy (ICP-OES or atomic emission) measures elemental metal concentrations in oil in parts per million. It is fast, inexpensive, and good at detecting fine wear particles typically below 5 to 8 microns.

Ferrography examines particles that are larger, and it reads their morphology. Without particulate debris analysis, in-service lubricant analysis results often fall short of concluding likely root cause or potential severity because of missing information about the possible identification or extent of damaging mechanisms.

The two techniques are complementary, not interchangeable. Spectroscopy tells you that iron is elevated. Ferrography tells you whether those iron particles are rubbing wear from normal operation, fatigue flakes from a bearing in distress, or cutting particles from a hard contamination event. The maintenance response to each of those diagnoses is completely different.

For critical rotating assets, running both together as part of an oil condition monitoring programme gives the most complete picture of machine health. For Failure Analysis and Root Cause investigations, ferrography findings on lube oil samples frequently become a key piece of evidence in understanding how and why a machine reached the state it did.

What a Ferrography Report Should Include

A properly executed ferrography report under ASTM D7690 should include the ferrogram slide images, particle classification by type and concentration, a wear severity assessment, and an interpretation that links findings to likely machine condition. It is not just a printout of numbers.

At TCR Advanced Engineering in Vadodara, ferrography testing on lube oil is conducted as per ASTM D7690 with a turnaround of 7 to 10 working days from sample receipt. The laboratory has built its wear debris analysis capability on the back of over 6,000 failure investigations across refineries, power plants, and process industry assets. That depth of failure investigation experience directly informs interpretation quality. An analyst who has seen how a thrust bearing fails in a refinery pump understands what the particles from a similar pump should and should not look like.

Setting Up a Ferrography Programme: Practical Considerations

A few things determine whether a ferrography programme actually delivers value.

Consistent sampling practice matters more than sampling frequency. Samples taken from different locations, after varying run times, or using contaminated sampling equipment produce results that cannot be trended. Establish a sampling procedure and stick to it.

Baseline early. The first few samples on a piece of equipment establish what normal looks like for that specific machine under its specific operating conditions. Without a baseline, elevated readings have no reference point.

Combine with vibration data where possible. Ferrography and vibration analysis address different aspects of machine condition. Vibration detects dynamic imbalance, misalignment, and structural resonance. Ferrography detects material degradation inside lubricated components. Together they reduce diagnostic uncertainty significantly.

Act on the findings. A ferrography programme that generates reports filed without maintenance follow-through is a cost with no return. The analysis is only as valuable as the decisions it informs.

Ferrography Wear Debris Analysis for Lube Oil: The Bottom Line

Your lube oil is a continuous record of what is happening inside your rotating equipment. The particles suspended in that oil carry detailed information about wear mode, wear source, and wear severity. Ferrography wear debris analysis, conducted under ASTM D7690, is the technique that makes that information readable.

It is not a replacement for vibration monitoring or routine spectroscopy. It is the diagnostic layer that bridges between "something is wrong" and "here is specifically what is wrong and where." For any rotating asset where an unplanned failure carries meaningful consequences, regular ferrographic analysis is a cost-effective part of a serious reliability programme.

Frequently Asked Questions

What is ferrography in lube oil analysis?

Ferrography is a technique that separates and examines wear particles from a lubricating oil sample under a microscope. It identifies particle type, size, shape, and concentration to assess the wear condition of a machine and detect developing faults before failure occurs.

What standard governs ferrography testing for lube oil?

ASTM D7690 is the standard practice for microscopic characterisation of particles from in-service lubricants by analytical ferrography. It standardises particle terminology, reporting formats, and examination procedures.

What is the difference between direct reading ferrography and analytical ferrography?

Direct reading ferrography quantifies the concentration of ferrous wear particles in oil to establish wear severity trends. Analytical ferrography separates particles onto a glass slide for microscopic examination to identify particle type, morphology, and likely wear source. Both are complementary.

What types of equipment benefit most from ferrography?

Rotating assets with lubricated internal components: gearboxes, centrifugal compressors, turbines, process pumps, rolling element bearings, and hydraulic systems. Any machine where internal wear cannot be visually inspected while running and where unplanned downtime is costly.

How often should ferrography be performed on critical rotating equipment?

Frequency depends on equipment criticality and operating conditions. Monthly sampling is common for critical assets. More frequent sampling is warranted when trending data shows a developing anomaly. Consistent sampling intervals matter more than frequency.

How does ferrography complement spectroscopic oil analysis?

Spectroscopy measures elemental metal concentration in fine particles typically below 5 to 8 microns. Ferrography examines larger particles and their morphology. The two techniques together provide more complete diagnostic information than either alone.
