Why That Ceramic Tile Cracked: Understanding Linear Thermal Expansion in Metals and Ceramics

Ever wondered why there are those deliberate gaps between railway tracks or why a perfectly laid ceramic tile suddenly develops cracks on a scorching summer day? The culprit isn't poor workmanship—it's something called linear thermal expansion, and understanding it can save lakhs in material failures and structural problems.

Here's the thing most people don't realise until it's too late. Every single material around us—whether it's the steel in a building frame, the ceramic tiles on a floor, or the aluminium in a window frame—changes size when temperature changes. Some expand dramatically, others barely budge, but they all move. And when materials that expand at different rates are forced to work together, that's when things crack, warp, or come apart entirely.

The Problem Nobody Talks About Until It's Expensive

Picture this scenario that plays out across construction sites in India every single day. A contractor installs beautiful imported tiles over a concrete substrate. Everything looks perfect during installation. Then summer arrives, temperatures soar to 45°C, and suddenly hairline cracks start appearing. The tiles aren't defective, the adhesive isn't cheap—the problem is thermal expansion mismatch. The tiles and the substrate are literally pulling away from each other because they expand at different rates.

Mr. Avinash Tambewagh, Technical Head at TCR Engineering, has seen countless cases where a simple thermal expansion test during the design phase would have prevented expensive failures down the line. His team regularly works with architects and engineers who've learned this lesson the hard way and now insist on proper material compatibility testing before specifications are finalised.

What Exactly Is the Coefficient of Linear Thermal Expansion

The Coefficient of Linear Thermal Expansion, or CLTE (represented by the Greek letter alpha, αL), measures exactly how much a material's length changes for every degree of temperature change. Think of it as the material's thermal personality. Some materials like aluminium are dramatic—they expand significantly with even moderate heat. Others like zirconia or specialised glass are the strong, silent types—barely moving even when temperatures climb.

This isn't abstract theory. When TCR Engineering tests a metal sample, they're measuring changes across temperatures ranging from 100°C to 900°C. For ceramics, the testing runs from ambient temperature up to 1000°C. These aren't random numbers—they represent the actual temperature ranges these materials experience in real-world applications across India, from the freezing cold of Ladakh to the blistering heat of Rajasthan.

Why This Testing Can Make or Break Your Project

Accurate CLTE values aren't just nice-to-have data points that sit in a binder somewhere. They're the foundation for critical decisions that affect everything from material selection to long-term structural integrity. When engineers at TCR conduct linear thermal expansion testing, they're providing information that determines whether a material combination will work harmoniously or fight against each other for decades.

Material selection becomes straightforward when you know the thermal expansion characteristics. Design calculations for thermal stress become accurate rather than guesswork. Stress analysis accounts for real-world temperature variations instead of theoretical assumptions. Construction compatibility gets verified before installation rather than discovered through failure.

Quality control and standard compliance might sound bureaucratic, but they're actually about preventing the kind of failures that make headlines. Even small mismatches in thermal expansion between materials can lead to cracking, warping, debonding, or complete performance failures over time. TCR Engineering has worked with projects where catching a thermal expansion mismatch during testing prevented what would have been crores in remediation costs.

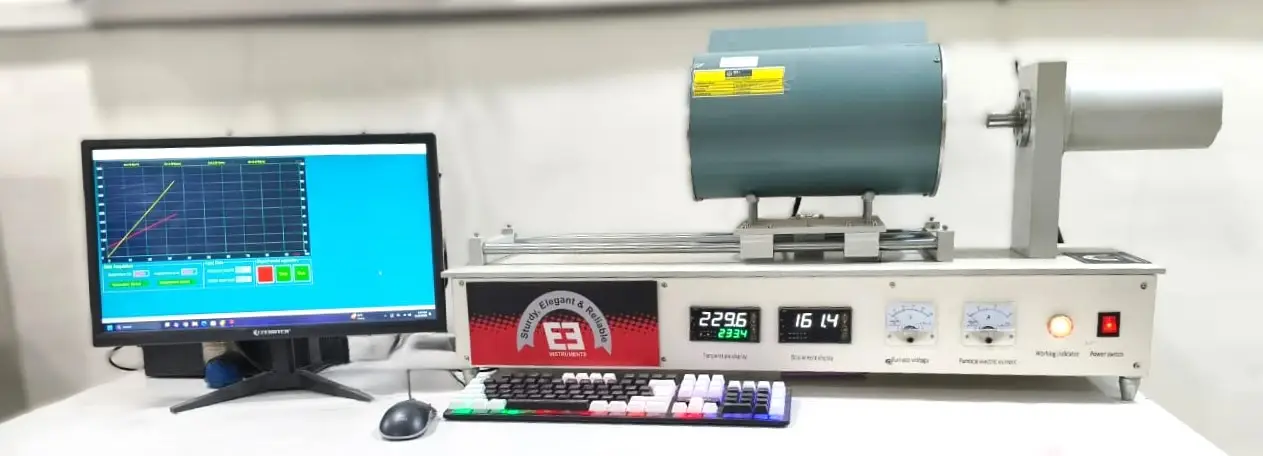

Linear Thermal Expansion Testing at TCR Engineering Services Lab in Mahape, Navi Mumbai, India

The Standards That Actually Matter

TCR Engineering doesn't just make up testing procedures. The laboratory follows internationally recognised standards that ensure results are consistent, reproducible, and accepted globally. Here's what each standard brings to the table.

ASTM E228 is the American standard test method for linear thermal expansion of solid materials, widely recognised globally for its comprehensive approach to measuring thermal expansion in metals and alloys across broad temperature ranges.

IS 3410 serves as the Indian standard method for determining linear thermal expansion of metals, providing testing protocols specifically adapted for materials and conditions relevant to Indian manufacturing and construction industries.

IS 13630-4 is the Indian standard specifically designed for ceramic tiles, covering test methods for determining the coefficient of linear thermal expansion in tiles used across diverse Indian climate conditions from flooring to facades.

ISO 10545-8 represents the international standard for ceramic tiles, focusing on linear thermal expansion determination and ensuring test results are comparable across laboratories worldwide, critical for export-oriented manufacturers.

These standards ensure that a test conducted at TCR Engineering produces results that hold up to scrutiny whether you're working on a domestic project or an international development.

How the Testing Actually Works (Without Getting Too Technical)

The principle behind linear thermal expansion testing is elegantly simple. When a solid material's temperature increases, its length increases proportionately. When temperature decreases, length contracts. The challenge isn't understanding the concept—it's measuring those microscopic changes with extreme precision.

For metals, TCR uses a dilatometer, a sophisticated instrument that can detect length changes measured in microns as the specimen is heated. For ceramics, precision measuring devices track dimensional changes as temperature varies. The equipment generates detailed graphs showing length change versus temperature, and from this data, the Coefficient of Linear Thermal Expansion gets calculated using a straightforward formula that relates the change in length to the original length and temperature change.

What makes TCR Engineering's approach valuable is the attention to detail throughout the process. Sample preparation follows exact protocols because even small variations in specimen condition can affect results. Temperature control is precise because the test needs to simulate actual service conditions. Data collection is meticulous because the entire point is providing reliable numbers that engineers can confidently use in their designs.

The Hidden Factors That Influence Thermal Expansion

Here's where it gets interesting. Thermal expansion isn't just a fixed property stamped on a material datasheet. Multiple factors influence how a material actually behaves when temperature changes, and understanding these factors separates adequate testing from excellent testing.

Material composition plays a huge role. Pure metals generally show higher expansion compared to alloys. Ceramics and glasses usually have very low expansion coefficients, which is why they're chosen for applications requiring dimensional stability. But add alloying elements to a metal, and you can significantly change its thermal behaviour. TCR's team sees this regularly when testing different grades of stainless steel or aluminium alloys—materials that look similar but behave quite differently under thermal stress.

Microstructure matters more than most people realise. Grain size, phase composition, and porosity all alter expansion behaviour. This is especially relevant for ceramics and materials like AAC blocks where porosity can be significant. Two ceramic tiles from different manufacturers might meet the same basic specification but show different thermal expansion characteristics because of microstructural differences.

Temperature range affects results in ways that catch people off guard. Expansion isn't always perfectly linear across all temperatures. Metals typically show near-linear expansion over their service range, but ceramics can behave non-linearly at elevated temperatures. This is why TCR Engineering always ensures testing covers the actual temperature range the material will experience in service, not just a standard test range.

Moisture content becomes critical for ceramics. These materials can absorb moisture, which artificially affects length measurements unless specimens are properly dried to constant mass before testing. It's one of those details that separates professional testing from amateur attempts—Mr. Tambewagh's team always ensures proper specimen conditioning before running thermal expansion tests.

Direction of measurement reveals another complexity. Materials like composites or rolled metals may show anisotropic expansion, meaning they expand differently in different directions. For critical applications, TCR tests multiple orientations to capture the complete thermal expansion behaviour. Residual stress from manufacturing processes like rolling, firing, or quenching can influence dimensional stability during heating, and experienced testing teams watch for these effects.

Making Sense of Your Test Results

Getting a test report with numbers is one thing. Understanding what those numbers mean for your specific application is where TCR Engineering's expertise becomes invaluable. The magnitude of the thermal expansion coefficient tells you immediately whether you're dealing with a material that expands significantly or one that remains dimensionally stable.

High CLTE values signal that the material expands considerably with temperature changes, which means higher risk of thermal stress in constrained applications. Low CLTE values indicate dimensional stability, making the material ideal for high-temperature applications or situations requiring precision. But the real insight comes from comparing different materials that need to work together.

This is where thermal expansion testing prevents disasters. Consider a tile versus adhesive combination, or a metal versus ceramic assembly, or steel connections to concrete structures, or bimetal components in machinery. If the thermal expansion coefficients don't align reasonably well, thermal cycling will create stress, and stress leads to failure. TCR Engineering has helped numerous projects identify incompatible material combinations before installation, saving substantial remediation costs.

Temperature range validity is something Mr. Tambewagh emphasises with every project team. A reported coefficient of linear thermal expansion is only meaningful for a specific temperature range. If your application operates at temperatures outside the tested range, the coefficient might not accurately predict behaviour. TCR's reports clearly state the temperature range for which results are valid, ensuring engineers don't extrapolate beyond what the data supports.

Uniformity and consistency in CLTE values across multiple specimens indicate good material quality, proper manufacturing control, and uniform microstructure. Large variations between specimens from the same batch suggest defects or inconsistent composition. This quality assessment aspect of thermal expansion testing often catches production issues before they become field failures.

Real Applications Where This Testing Saves Projects

TCR Engineering's work in linear thermal expansion testing spans diverse industries and applications across India. Railway projects use CLTE data to ensure proper gap sizing between tracks that must accommodate massive temperature swings from winter to summer. Building facades incorporate materials tested for thermal compatibility to prevent the buckling and stress fractures that plague poorly designed curtain wall systems.

Flooring installations, particularly large format tiles in commercial spaces, benefit enormously from thermal expansion testing. The data helps specify appropriate expansion joints and ensures adhesive systems can accommodate the movement. Industrial applications involving furnaces, kilns, or high-temperature processing equipment require materials with specific thermal expansion characteristics, and TCR provides the testing data that drives those material selections.

Aerospace and precision manufacturing applications demand extremely tight control over dimensional stability. The thermal expansion data TCR generates helps manufacturers predict and compensate for dimensional changes across operating temperature ranges. Even in consumer products like cookware or electronic enclosures, understanding thermal expansion prevents warping and maintains tight tolerances.

Why TCR Engineering's Approach Makes a Difference

Testing linear thermal expansion isn't just about owning the right equipment. It's about understanding what engineers actually need from the data and providing results that stand up to real-world scrutiny. TCR Engineering's laboratory is equipped with state-of-the-art dilatometers and precision measurement systems, but the real value comes from the expertise behind the equipment.

Mr. Avinash Tambewagh and his team don't just generate test reports—they provide consultation on result interpretation, material compatibility assessment, and practical recommendations for addressing thermal expansion challenges. When a project team receives CLTE data from TCR, they're getting information they can confidently use in design calculations, specification development, and quality control programmes.

The laboratory's adherence to ASTM E228, IS 3410, IS 13630-4, and ISO 10545-8 ensures results are internationally recognised and accepted for projects requiring certification or foreign investment. This becomes particularly valuable for Indian manufacturers exporting products or for international projects being executed in India.

FAQs About Linear Thermal Expansion Testing

What's the difference between linear and volumetric thermal expansion? Linear thermal expansion measures length change in one direction, while volumetric expansion measures overall volume change. For most engineering applications involving structural materials, linear expansion is what matters because it determines stress and compatibility in assemblies. TCR Engineering specialises in linear thermal expansion testing as it's most relevant for metals, ceramics, and construction materials.

How accurate is thermal expansion testing? TCR Engineering's equipment can measure length changes to within a few microns, providing high precision CLTE values. The accuracy depends on proper specimen preparation, precise temperature control, and careful measurement technique—all areas where TCR's experience ensures reliable results.

Can you test thermal expansion of composite materials? Absolutely. Composites often show directional dependence in thermal expansion, so TCR tests multiple orientations to provide complete characterisation. The testing approach adapts to the specific material while maintaining standard compliance.

Why do test results sometimes vary between laboratories? Variations can result from differences in equipment calibration, specimen preparation, testing procedures, or data analysis methods. TCR Engineering's strict adherence to international standards and regular equipment calibration minimises inter-laboratory variation and ensures reproducible results.

Is thermal expansion testing required by Indian building codes? While not universally mandated, many project specifications now require CLTE data, especially for critical applications like large-format cladding, precision assemblies, and high-temperature applications. International projects in India typically require this testing as part of material qualification.

How long does thermal expansion testing take? Testing duration depends on the material type and temperature range required. Typical metallic material testing takes 2-3 days including specimen preparation. Ceramic testing may require additional time for moisture conditioning. TCR Engineering provides realistic timelines during project planning.

What's the cost of thermal expansion testing in India? Costs vary based on material type, number of specimens, temperature range, and testing standard followed. TCR Engineering provides detailed quotations based on specific project requirements. The investment in testing is minimal compared to the cost of material failure or compatibility issues in the field.

Can existing installed materials be tested for thermal expansion? Testing requires properly prepared specimens, so sampling from existing installations is possible if representative samples can be extracted without compromising the structure. TCR's team can advise on sampling strategies for existing materials.

Understanding and controlling linear thermal expansion ensures safe, reliable, and long-lasting performance of metals, ceramics, and structural assemblies across diverse applications. TCR Engineering's comprehensive testing capabilities, backed by Mr. Avinash Tambewagh's technical expertise and adherence to standards like ASTM E228, IS 3410, IS 13630-4, and ISO 10545-8, provide engineers and manufacturers with the precise data needed to prevent thermal expansion failures. From railway tracks to building facades, from industrial furnaces to precision instruments, proper thermal expansion testing makes the difference between materials that work harmoniously and those that fight against each other until something breaks. When the stakes involve structural safety, product performance, and project economics, having TCR Engineering's testing expertise ensures your materials are truly compatible for the thermal challenges they'll face over their lifetime.
