Pitting Corrosion Test as per ASTM G48: TCR Engineering's Complete Guide to Alloy 625 Testing

Ever wondered why some flanges fail unexpectedly in corrosive environments whilst others last for decades? The answer often lies in something as small as a pinhole – pitting corrosion.

At TCR Engineering, the team understands that when it comes to critical applications in oil and gas, chemical processing, or marine environments, there's no room for guesswork. That's why TCR Engineering conducts pitting corrosion tests as per ASTM G48, giving clients the confidence they need before installation.

What's Really at Stake with Pitting Corrosion?

Here's the thing about pitting corrosion – it's sneaky. Whilst general corrosion spreads evenly across a surface, pitting attacks specific spots, creating tiny holes that penetrate deep into the material. Think of it like termites eating through wood. The surface might look fine, but underneath, the damage is spreading.

For industries relying on Alloy 625 flanges, this isn't just about material failure. It's about:

• Unexpected shutdowns that cost lakhs per hour

• Safety risks when high-pressure systems are compromised

• Replacement costs that weren't in the budget

• Reputation damage when delivery timelines slip

That's where proper testing comes in.

How TCR Engineering Performs Pitting Corrosion Testing

TCR Engineering follows ASTM G48 Method A – the industry gold standard for evaluating the resistance of stainless steels and related alloys to pitting and crevice corrosion.

The Testing Process Explained

The process isn't complicated, but it needs precision:

Temperature Control: Tests run at exactly 50°C (122°F). Why this temperature? It's aggressive enough to reveal potential weaknesses without being unrealistic for actual service conditions.

Duration: The Alloy 625 flanges undergo testing for a full 72 hours. This extended period ensures that even slow-developing pits are detected.

Test Solution: Samples are immersed in a ferric chloride solution as specified in ASTM G48. This creates an environment that accelerates pitting if the material is susceptible.

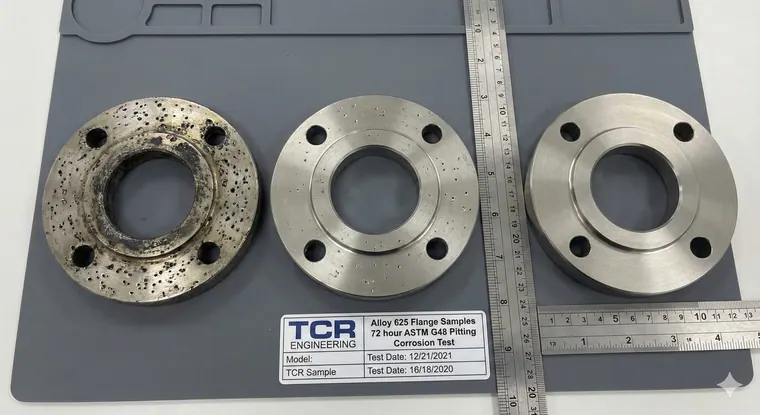

Documentation: Every test is photographed upon completion, giving clients visual proof of their material's performance.

What Makes the ASTM G48 Standard Reliable?

ASTM G48 isn't just another specification gathering dust on a shelf. It's trusted worldwide because it:

• Provides repeatable results across different laboratories

• Simulates real-world corrosive conditions in an accelerated timeframe

• Offers clear acceptance criteria that remove ambiguity

• Has been refined over decades of industry experience

Understanding the Acceptance Criteria

TCR Engineering applies strict acceptance criteria for Alloy 625 flanges:

Corrosion Rate: Must be less than 4.0 g/m²/24h

This quantitative measure tells you exactly how much material is being lost. Think of it as measuring the speed of deterioration. Anything above 4.0 g/m²/24h suggests the alloy won't hold up in corrosive service.

Visual Inspection: No visible pitting at 20x magnification

Numbers only tell part of the story. Visual inspection at 20x magnification catches localised attacks that weight loss alone might miss. Even if the overall corrosion rate is acceptable, visible pits mean potential failure points.

Why These Specific Numbers?

These aren't arbitrary figures. The 4.0 g/m²/24h threshold represents years of field data correlation. Materials performing below this rate in ASTM G48 testing typically deliver reliable service in actual chloride-containing environments.

The 20x magnification standard catches pits before they become problematic whilst avoiding false alarms from minor surface irregularities.

Why Alloy 625 Flanges Need Special Attention

Alloy 625 is popular for a reason – it offers excellent corrosion resistance in harsh environments. But here's what many people don't realise: not all Alloy 625 is created equal.

Manufacturing variations, heat treatment differences, and composition tolerances can all affect pitting resistance. That's why TCR Engineering tests every batch.

Common applications for Alloy 625 flanges include:

• Offshore oil platforms exposed to seawater

• Chemical processing equipment handling chlorides

• Flue gas desulphurisation systems

• High-temperature oxidising environments

In these applications, a single pitting failure can cascade into major problems. Testing isn't just a formality – it's insurance.

The TCR Engineering Difference

What sets TCR Engineering apart in pitting corrosion testing?

Complete Documentation: Beyond just pass/fail results, clients receive detailed test photographs showing the actual condition of their materials. These images become part of the quality record and can be crucial for compliance documentation.

Industry Expertise: The corrosion testing team understands not just the test method, but the real-world implications. They've seen what works and what fails in actual service.

Quick Turnaround: Whilst the test itself takes 72 hours, TCR Engineering's efficient processes mean clients get results without unnecessary delays.

Transparent Communication: Questions about test results? The team explains findings in plain language, not just technical jargon.

What Happens If a Sample Fails?

Let's be honest – sometimes materials don't meet the acceptance criteria. That's not necessarily bad news. It's actually good news that you found out in the lab rather than after installation.

When a sample fails, TCR Engineering provides:

• Detailed analysis of why the failure occurred

• Recommendations for alternative materials or heat treatments

• Comparative data to help with material selection

• Follow-up testing if modifications are made

Think of it as a checkpoint that saves money and headaches down the line.

Real-World Impact: A Quick Example

A chemical plant once approached TCR Engineering to test Alloy 625 flanges for a new chlorine handling system. The initial batch showed slight pitting at 20x magnification, even though the corrosion rate was acceptable.

Rather than installing potentially problematic flanges, the client worked with their supplier to adjust the manufacturing process. Subsequent testing showed perfect results. The cost of retesting? Around ₹50,000. The cost of replacing failed flanges after installation? Over ₹25 lakhs, plus production downtime.

That's the value of proper pitting corrosion testing.

Planning Your Pitting Corrosion Testing

If you're specifying Alloy 625 flanges for a critical application, here's what you need to consider:

Timeline: Factor in the 72-hour test duration plus preparation and reporting time. Plan for about one week total.

Sample Quantity: Discuss with TCR Engineering how many samples need testing based on your batch size and risk tolerance.

Documentation Requirements: If you need the test photographs for regulatory compliance or customer requirements, specify this upfront.

Budget: Testing costs are minimal compared to material and installation costs. It's typically less than 1% of the total component value.

Frequently Asked Questions

Why can't we just rely on the material certificate from the manufacturer?

Material certificates confirm chemical composition and mechanical properties, but they don't test for pitting resistance in the specific aggressive environment simulated by ASTM G48. Composition alone doesn't guarantee corrosion performance.

How often should pitting corrosion testing be performed?

Best practice is to test each manufacturing batch, especially if flanges come from different suppliers or production runs. Material properties can vary even within specification limits.

Can ASTM G48 testing predict exact service life?

No test can perfectly predict field performance because actual conditions vary. However, ASTM G48 provides a reliable indicator of relative pitting resistance and identifies materials likely to have problems.

What's the difference between ASTM G48 Method A and other methods?

ASTM G48 includes six methods (A through F). Method A uses ferric chloride and is specifically designed for testing nickel-chromium alloys like Alloy 625. Other methods use different solutions or conditions for different material types.

Do we need pitting corrosion testing if the flanges are only exposed to mild conditions?

If your environment truly isn't corrosive, you might be over-specifying by using Alloy 625 in the first place. But if you've chosen Alloy 625 because corrosion is a concern, testing verifies you're getting what you're paying for.

How do test photographs help after testing is complete?

Test photographs provide visual evidence of material condition and serve as permanent quality records. They're valuable for regulatory compliance, customer approval, and troubleshooting if issues arise later.

Can TCR Engineering test materials other than Alloy 625?

Absolutely. Whilst Alloy 625 flanges are common, TCR Engineering's pitting corrosion test capabilities extend to various stainless steels, nickel alloys, and other corrosion-resistant materials.

What happens if we need rush testing?

The 72-hour immersion period is non-negotiable – that's specified in ASTM G48. However, TCR Engineering can often expedite sample preparation and reporting around the actual test duration.

Making the Right Choice for Your Project

Choosing to conduct pitting corrosion testing as per ASTM G48 isn't just about ticking a compliance box. It's about making informed decisions based on real data rather than assumptions.

When projects involve critical applications, aggressive environments, or high replacement costs, testing becomes invaluable. The investment in proper testing – both in time and money – is negligible compared to the potential consequences of pitting failure.

TCR Engineering's approach combines technical rigour with practical understanding. The team doesn't just run tests; they help clients interpret results and make better material decisions.

Taking the Next Step

If you're working with Alloy 625 flanges or other corrosion-resistant alloys in demanding applications, pitting corrosion testing should be part of your quality assurance program.

TCR Engineering makes the process straightforward:

1. Submit your samples with project specifications

2. Receive detailed testing following ASTM G48 Method A protocols

3. Get comprehensive results including test photographs

4. Make confident decisions based on reliable data

The corrosion testing team at TCR Engineering is available to discuss your specific requirements and explain how pitting corrosion testing fits into your overall quality plan.

At the end of the day, pitting corrosion testing as per ASTM G48 is about one thing: peace of mind. It's knowing that the flanges you're installing today will still be performing years from now, even when conditions get tough. TCR Engineering conducts these critical pitting corrosion tests to industry-leading standards, giving clients the confidence to move forward with their most demanding projects.
