Pull-Out Test on TMT Bars: Understanding Bond Strength That Actually Holds Your Structure Together

Pull-out test on TMT bars isn't something that comes up in everyday construction conversations, but it's the test that answers one of the most critical questions in reinforced concrete design—will the bond between your steel and concrete actually hold when loads are applied? You're not alone if you've wondered whether those ribbed patterns on TMT bars really make a difference, or if the bond strength assumptions in your structural calculations reflect real-world performance.

TCR Engineering has been conducting pull-out tests on reinforcement bars for manufacturers, researchers, and quality auditors across India, and under the technical leadership of Manoj Singh, Head of the Mechanical Testing Department, the company has developed expertise in evaluating bond characteristics that structural engineers rely on. Because here's the reality—no matter how strong your concrete is or how high the yield strength of your TMT bars, if the bond between them fails, your reinforced concrete element fails. Period.

Why Pull-Out Testing Keeps Structural Engineers and TMT Manufacturers Concerned

Think about how reinforced concrete actually works. When you apply loads to a concrete beam or column, the concrete and steel need to act together. The concrete takes compression, the steel handles tension, and the bond between them transfers forces from one to the other. Break that bond, and you don't have reinforced concrete anymore—you've just got concrete with steel sitting inside it doing nothing useful.

The ribbed pattern on TMT bars isn't just for looks or easy identification. Those ribs create mechanical interlock with the surrounding concrete, developing the bond strength that makes composite action possible. But here's what TMT manufacturers and structural engineers are dealing with—different rib patterns, different grades of steel, different bar diameters, and different concrete strengths all affect bond performance. How do you know if a particular TMT bar will develop adequate bond with your specified concrete grade?

Manoj Singh has seen this question come up repeatedly, especially with newer TMT grades like Fe 550D and Fe 550D CRS becoming standard in Indian construction. These higher-strength steels offer advantages in terms of reduced reinforcement quantity and improved structural efficiency, but their bond characteristics need verification. That's exactly what pull-out testing provides.

What Actually Happens During a Pull-Out Test

The pull-out test following IS 2770 Part 1 is elegantly simple in concept but demanding in execution. You embed a TMT bar in a concrete cube, cure it for 28 days to achieve proper concrete strength and bond development, then pull the bar out while measuring the force required. The maximum force before the bar slips divided by the embedded surface area gives you the bond strength.

But that simple description hides a lot of detail that affects whether test results are meaningful or misleading. TCR Engineering's approach to pull-out testing, refined under Manoj's technical guidance, ensures that every variable is controlled to give you data you can actually use.

Sample Preparation—Where Everything Starts

The concrete cubes used for pull-out testing need to represent the concrete grade that will be used in actual construction. Typically, M25 or M30 grade concrete is used for testing, matching common structural concrete specifications. The cubes are cast with the TMT bar positioned precisely at the centre, with specific embedment length based on bar diameter.

Here's something that catches a lot of people off guard. You don't just stick a TMT bar in concrete and call it done. The bar needs to be held rigidly during casting to prevent movement. The concrete needs to be properly compacted around the bar to eliminate voids that would give artificially low bond strengths. The curing needs to be controlled for the full 28 days to ensure the concrete achieves design strength and the bond fully develops.

For each diameter being tested, TCR Engineering prepares three sets of specimens—one set with ribbed TMT bars and one set with plain bars for comparison. Testing multiple specimens isn't just about meeting standard requirements. It's about capturing the natural variability in bond strength and ensuring the average values are statistically meaningful.

The Testing Process Itself

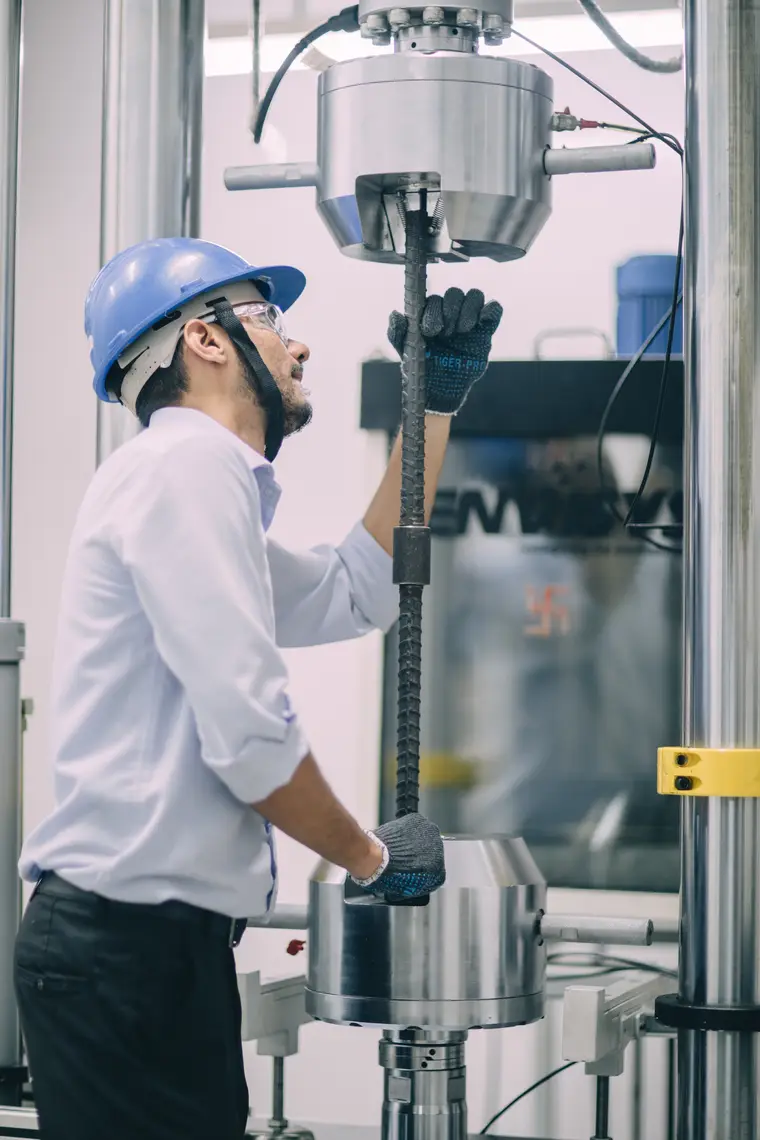

After 28 days of curing, the specimen is placed in the testing machine with the bar held by grips at one end and the concrete cube supported at the other. Load is applied gradually, pulling the bar relative to the concrete. As the load increases, the bond between bar and concrete is stressed until eventually either the bar slips through the concrete or the concrete fails around the bar.

The critical data points are the load at which initial slip occurs and the maximum load achieved. From these, bond stress is calculated based on the embedded length and bar perimeter. For ribbed TMT bars, you expect higher bond strengths compared to plain bars of the same diameter because of the mechanical interlock from the ribs.

TCR Engineering tests the following diameter range for both Fe 550D and Fe 550D CRS grades covering the full spectrum of sizes used in construction. The smaller diameters like 8mm, 10mm, and 12mm are common in slabs and light reinforcement. The medium sizes like 16mm, 20mm, and 25mm are workhorses for beams and columns. The larger diameters like 28mm and 32mm show up in heavy structural elements and foundations.

What the Results Actually Tell You

Bond strength values from pull-out tests give you several insights. First, they confirm whether the rib geometry on a particular TMT bar is effective at developing bond. If pull-out tests show bond strengths significantly lower than expected, it might indicate inadequate rib height, poor rib spacing, or surface contamination.

Second, comparing bond strengths across different diameters reveals whether bond characteristics are consistent across the size range. Sometimes manufacturers optimize rib patterns for common sizes but don't maintain the same effectiveness for very small or very large diameters.

Third, testing both ribbed and plain bars shows exactly how much benefit the rib pattern provides. If the difference between ribbed and plain bar bond strengths isn't significant, something's wrong with either the rib design or the testing procedure.

The Numbers That Matter for Your Testing Budget

TCR Engineering's pricing for pull-out testing is structured by diameter ranges, reflecting the different specimen sizes and testing equipment requirements. For the smaller diameter range covering 8mm, 10mm, and 12mm, the testing charge is ₹35,000 per set of specimens. This includes specimen preparation, 28-day curing, testing of three specimens, and the detailed test report.

For the larger diameter range covering 16mm, 20mm, 25mm, 28mm, and 32mm, the charge is ₹45,000 per set. The higher cost reflects the larger concrete volumes needed, heavier specimens to handle, and higher loads during testing requiring more robust equipment. These charges are per diameter, meaning if you want to test all eight diameters for Fe 550D grade, you're looking at three sets at ₹35,000 and five sets at ₹45,000, totaling ₹3,30,000 plus 18% GST as applicable.

It's important to note that pull-out testing is not currently covered under TCR Engineering's NABL scope or BIS scope. This doesn't mean the testing is unreliable—it means the test method itself isn't part of the formal accreditation scope. The testing still follows IS 2770 Part 1 procedures rigorously, and the results are technically sound. For research purposes, product development, or internal quality verification, these tests provide valuable data even without formal accreditation.

Timeline Expectations for Pull-Out Testing

Here's the reality about pull-out test timelines that sometimes surprises clients. The test itself—pulling the bar out and recording data—takes maybe 30 minutes per specimen. But the 28-day curing period is non-negotiable. You can't accelerate it without fundamentally changing what you're testing.

TCR Engineering's typical timeline works like this. Specimens are cast within a few days of receiving TMT bar samples, depending on scheduling and concrete batching logistics. Then comes the 28-day wait while concrete cures under controlled conditions. After curing is complete, testing all specimens for one diameter takes about a day including setup and documentation. Report preparation and review adds another few days. Total time from sample receipt to final report delivery is typically 35 to 40 working days.

If you're testing multiple diameters, they can often be processed in parallel using the same curing period, so eight diameters don't take eight times as long. But the 28-day curing period is always the dominant factor in the timeline. Manoj always tells clients to plan ahead—don't wait until you need results immediately to start testing.

Sample Requirements That Actually Matter

Getting the sample requirements right is crucial for meaningful results. For each diameter you want to test, TCR Engineering needs three sets of TMT reinforcement bars of sufficient length to create the required embedment and have enough bar extending beyond the concrete for gripping. Additionally, three sets of plain TMT bars of the same diameter are needed for comparison testing.

The exact length required varies by diameter because embedment depth is typically related to bar diameter, but as a general guideline, sending bars around 600mm to 800mm long ensures sufficient material for specimen preparation. It's better to send slightly longer bars than risk having insufficient length for proper testing.

Why Both Fe 550D and Fe 550D CRS Matter

The Fe 550D grade has become increasingly popular in Indian construction for its combination of high strength and good ductility. The CRS (Corrosion Resistant Steel) variant adds enhanced corrosion resistance, making it particularly valuable for coastal projects, industrial structures, or any application where long-term durability in aggressive environments is critical.

Testing both grades separately is important because the manufacturing processes and chemical compositions differ, which can affect surface characteristics and bond behaviour. You can't assume that bond strength data from regular Fe 550D automatically applies to Fe 550D CRS. Each needs independent verification.

Real Talk About Bond Strength in Indian Construction

Bond between reinforcement and concrete is one of those fundamentals that everyone assumes will work but doesn't always verify. Indian construction uses a wide variety of concrete mixes, TMT bar sources, and construction practices. What works perfectly in a controlled batching plant might perform differently when concrete is mixed on site. What bonds well with well-graded aggregates might struggle with poor-quality materials.

TCR Engineering's testing, guided by Manoj Singh's practical experience, provides verification under standardized conditions. But the results need to be interpreted in the context of actual construction. If pull-out tests show marginal bond strengths with good quality concrete in the lab, that's a red flag for how the bars will perform in less-controlled site conditions.

Questions TMT Manufacturers and Engineers Are Actually Asking

Why do we need pull-out tests if TMT bars already meet tensile strength requirements?

Tensile strength tells you how strong the steel is. Bond strength tells you whether that strength can actually be utilized in concrete. A bar can have excellent tensile properties but poor bond characteristics if the rib geometry isn't right or if surface conditions affect adhesion. Both are important, and one doesn't substitute for the other.

Can we test just a few diameters and assume others will be similar?

Different diameters often show different bond characteristics because the rib geometry may be optimized differently, the ratio of rib area to bar perimeter changes, and the manufacturing process might vary. For complete characterization, testing across the full diameter range provides much better assurance than extrapolating from limited data.

What if our TMT bars fail the pull-out test?

Failed tests trigger investigation. Sometimes it's a genuine problem with rib design that needs modification. Other times it might be surface contamination from storage or handling that affected bond. Occasionally it's an issue with concrete quality in the test specimens. Manoj's team works through the investigation to identify root causes and determine whether it's a material issue or a testing variable.

How does pull-out test bond strength relate to development length in design?

Development length calculations in codes are based on assumed bond stress values. Pull-out tests give you actual bond stress for specific bar-concrete combinations. If actual bond stress is higher than code assumptions, you're conservative. If it's lower, you might need longer development lengths or different detailing. The relationship isn't direct, but the data informs whether code assumptions are reasonable for your materials.

Can we test with different concrete grades than M25 or M30?

Yes, concrete grade can be adjusted to match your specific application. If you're designing for M20 concrete, testing with M20 makes sense. If you're working with high-strength concrete like M40, testing at that grade provides more relevant data. The key is discussing the requirement upfront so specimens are prepared with appropriate concrete.

Do corrosion-resistant TMT bars bond differently than regular bars?

The surface treatment or alloying that provides corrosion resistance can potentially affect bond characteristics, which is why testing CRS grades separately matters. In most cases, the bond performance is similar to regular TMT bars, but verification through testing ensures you're not assuming something that isn't true.

How long can we store specimens before testing?

Specimens should be tested reasonably soon after the 28-day curing period. Storing them for months can lead to continued cement hydration, carbonation, and drying effects that alter the concrete properties. TCR Engineering typically tests within a few days of the curing period ending to ensure results reflect the intended conditions.

What about testing in different environmental conditions?

Standard pull-out tests are conducted at ambient lab conditions. If your application involves testing bond strength after exposure to elevated temperatures, freeze-thaw cycles, or chemical exposure, modified testing protocols can be discussed. This isn't routine testing, but for research or special applications, environmental conditioning before testing can be incorporated.

Can test reports be used for product certification or marketing?

Test reports from TCR Engineering can be used to demonstrate product performance, though since pull-out testing isn't in the NABL or BIS scope, the reports don't carry formal accreditation stamps. For technical documentation, product literature, or demonstrating performance to clients, the reports provide credible third-party data about bond characteristics.

How does TCR Engineering's pull-out testing capability compare to other labs?

Many commercial testing labs focus on routine TMT bar testing—tensile strength, bend test, chemical composition. Pull-out testing is more specialized and not widely available. TCR Engineering's capability to handle the full diameter range from 8mm to 32mm for both regular and CRS grades positions the company as one of the few facilities in India equipped for comprehensive bond strength evaluation.

The Technical Setup That Makes Reliable Testing Possible

Pull-out testing requires specific equipment and setup. You need a universal testing machine with sufficient capacity to pull larger diameter bars, fixtures to hold the concrete cube rigidly while allowing the bar to move, grips that can hold ribbed bars without slipping, and displacement measurement systems to track bar movement during testing.

TCR Engineering's mechanical testing lab has invested in the equipment and developed the fixturing needed for reliable pull-out testing. But Manoj always emphasises that equipment is only part of the equation. Proper specimen preparation, careful test execution, and accurate data recording by trained technicians are equally important. The combination is what delivers results you can trust.

Why This Testing Matters for TMT Quality Assurance

For TMT bar manufacturers, pull-out testing provides verification that rib design and manufacturing processes are producing bars with adequate bond characteristics. It's one thing to design ribs based on theory or industry practice. It's another to confirm through testing that the design actually delivers the bond strength needed.

For structural engineers and construction companies, pull-out test data provides confidence that the TMT bars specified will develop the bond assumed in structural calculations. When codes allow reduced development lengths for higher-grade steels, having bond strength verification becomes even more important.

For researchers and academics, pull-out testing generates data for understanding how variables like concrete strength, bar diameter, rib geometry, steel grade, and surface conditions affect bond behaviour. This research informs better design codes and better TMT bar manufacturing practices.

Moving Forward with Confidence in Bond Performance

At the end of the day, pull-out test on TMT bars is about ensuring that the fundamental mechanism of reinforced concrete—the bond between steel and concrete—will perform as your design assumes. It's about knowing that when loads are applied to your structure, forces will transfer properly between materials and the composite action you're counting on will actually happen.

TCR Engineering's pull-out testing capability, under Manoj Singh's technical leadership, provides TMT manufacturers, structural engineers, and quality auditors with the data they need to verify bond characteristics across the full range of bar sizes and steel grades used in modern Indian construction. Whether you're developing new TMT products, qualifying suppliers for major projects, or conducting research on bond behaviour, having access to reliable pull-out testing makes the difference between assumptions and verified performance.

If you're working with Fe 550D or Fe 550D CRS TMT bars and need comprehensive bond strength evaluation from 8mm through 32mm diameters, TCR Engineering's mechanical testing division has the capability and expertise to support your testing requirements. Because in reinforced concrete construction, there are no shortcuts to getting the bond strength fundamentals right, and pull-out test on TMT bars is how you verify those fundamentals are in place.
