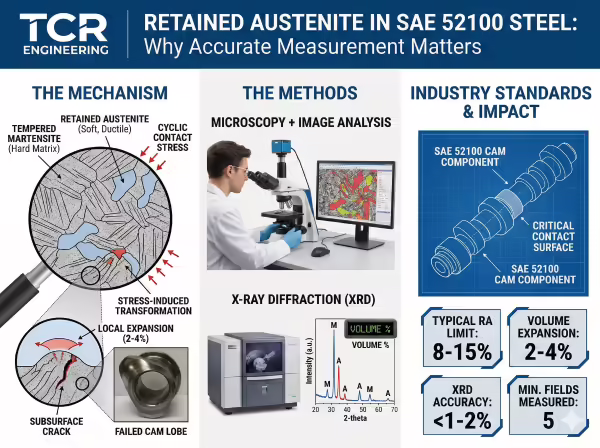

Retained Austenite in SAE 52100 Steel: Why Accurate Measurement Matters for CAM Performance

Retained austenite measurement in SAE 52100 steel is one of the most consequential tests a CAM manufacturer can commission, yet it remains one of the most misunderstood. Get it wrong, and a perfectly machined component can fail prematurely under cyclic loading. Get it right, and you have a reliable, data-backed assurance that your heat treatment process is within control.

SAE 52100 is a high-carbon, chromium-bearing steel used widely across bearing races, CAM shafts, roller elements, and precision contact surfaces. Its mechanical performance after quench and temper (Q&T) treatment depends significantly on how much austenite is retained in the final microstructure, and how accurately that retention is quantified.

This article explains what retained austenite is, why it matters specifically in Q&T treated SAE 52100 CAM components, which testing methods are used in practice, and how TCR Engineering approaches this measurement with the accuracy and traceability that engineering decisions require.

What Is Retained Austenite and Why Does It Form in SAE 52100 Steel?

Austenite is the high-temperature face-centred cubic (FCC) phase of steel. During quenching, most of this austenite transforms into martensite, which is the hard, strong phase that gives hardened steel its mechanical properties. However, some austenite does not transform. This untransformed fraction is called retained austenite.

In SAE 52100 steel, retained austenite forms because:

High carbon content (0.95 to 1.10%) depresses the martensite finish temperature (Mf), often below room temperature, meaning transformation is incomplete by the time the part is cooled.

Chromium additions further stabilise the austenite and push the Mf even lower.

Quench rate and temperature directly influence how much austenite is retained after the thermal cycle.

After tempering, some additional austenite decomposes, but a measurable fraction often remains. It is this fraction that needs to be measured, reported, and controlled.

Why Does This Matter for CAM Components Specifically?

A CAM component operates under repeated contact stress. The surface experiences Hertzian pressure, sliding friction, and cyclic loading in every rotation. Retained austenite, while slightly softer than martensite, is metastable. Under stress, it can transform to martensite, a phenomenon called stress-induced martensitic transformation.

This transformation causes a local volume expansion of approximately 2 to 4 percent. In a controlled, uniform situation, this can actually improve surface compressive residual stress.

But when it is uncontrolled and localised, it leads to:

•        Dimensional instability of the component over service life

•        Subsurface fatigue crack initiation

•        Spalling on contact surfaces

•        Reduced fatigue life compared to a fully martensitic microstructure

Most bearing and CAM standards set an upper limit on acceptable retained austenite, commonly between 8 and 15 percent by volume depending on the application. Knowing the exact percentage is therefore not just academic, it is a pass or fail engineering criterion.

How Is Retained Austenite Measured? The Two Primary Methods

Two methods are widely accepted for quantifying retained austenite in hardened steels:

1. Microscopy with Image Analysis (Electro-Polish and Copper Deposition Method)

This method involves preparing a metallographic sample by electropolishing to remove surface damage, then using copper deposition to enhance contrast between martensite and retained austenite phases under optical microscopy.

The prepared surface is imaged at multiple locations, typically a minimum of five frames, and image analysis software calculates the area fraction of each phase. The area fraction is then reported as volume percent retained austenite.

Practical range: This method is reliable for retained austenite content greater than 5 percent by volume. Below this threshold, the measurement uncertainty becomes significant relative to the measurement itself, and results should be interpreted with appropriate caution.

Advantages:

•        Lower cost per sample compared to XRD

•        Provides visual context of the microstructure alongside the quantitative result

•        Useful for routine quality checks in production environments

•        Sample preparation can be completed relatively quickly

2. X-Ray Diffraction (XRD) Method

XRD is the more precise quantitative technique. It measures the diffracted intensity of X-rays from crystallographic planes of different phases. Since austenite (FCC) and martensite (BCT) have distinct crystal structures, their diffraction peaks appear at different 2-theta angles.

By comparing integrated peak intensities and applying the appropriate structure factors, the volume fraction of retained austenite is calculated directly from crystallographic data.

Advantages:

•        Highly accurate and reproducible, with uncertainty typically below 1 to 2 percent

•        Not dependent on metallographic preparation quality or operator interpretation

•        Can detect retained austenite below 5 percent reliably

•        Conforms to international standards including ASTM E975 and SAE SP-453

Limitation: XRD measures a near-surface volume of approximately 10 to 20 micrometres depending on the material and radiation source. For components with significant surface residual stress gradients, this is an important consideration.

"When clients bring us SAE 52100 CAM samples for retained austenite measurement, our first question is always about the expected range and the decision threshold. If the component specification requires control below 5 percent, we recommend XRD as the primary method. For values between 5 and 20 percent, both methods are valid, and image analysis provides the added benefit of microstructural context that helps identify whether the heat treatment cycle was consistent across the sample cross-section." — Dr. Ajay Essampally, Sr. Metallurgist, TCR Engineering Services Pvt. Ltd.

Retained Austenite Measurement: Choosing the Right Method for Your Application

The choice between image analysis and XRD is not simply a cost decision. It depends on several engineering factors:

Specification Threshold

If your component drawing or standard specifies a retained austenite limit below 5 percent, XRD is the appropriate method. The microscopy method is reliable above 5 percent but introduces unacceptable uncertainty at lower fractions.

Stage of the Production Cycle

During process development and heat treatment qualification, XRD is preferred because it provides the most accurate baseline. During routine production quality checks, image analysis may be adequate if the process is known to produce retained austenite well within the acceptable range.

Nature of the Surface Condition

Electropolishing is a critical step in the image analysis method. Components with complex geometry, deep case hardening, or significant residual stress near the surface require careful sample preparation. TCR Engineering uses electro-polish and copper deposition specifically to ensure that the prepared surface is representative of the subsurface microstructure, not contaminated by mechanical polishing artifacts.

Regulatory or Customer Requirement

Some OEMs and tier-1 suppliers in the automotive and bearing industries specify the test method in their drawing notes or supplier quality requirements. Always check whether your customer has a defined method preference before selecting the approach.

Common Mistakes in Retained Austenite Testing for Hardened Steel

TCR Engineering's metallurgists have reviewed specimens from component manufacturers across India where retained austenite results were questioned or disputed. The common root causes are predictable and avoidable.

Inadequate Sample Preparation

Mechanical polishing introduces a deformed layer on the surface that can mask retained austenite or create transformation artefacts. Electropolishing removes this layer. Skipping or rushing this step is the single most common source of inaccurate results in image analysis testing.

Insufficient Number of Fields

Measuring fewer than five fields of view gives statistically unreliable results. Retained austenite distribution in a Q&T steel is not perfectly uniform. Averaging across a minimum of five representative fields ensures the reported value reflects the bulk condition of the sample.

Using Image Analysis Below the Reliable Threshold

Reporting a retained austenite value of 3 percent using image analysis introduces significant measurement uncertainty. At such low volume fractions, the difference between retained austenite and other microstructural features can be ambiguous under optical microscopy. XRD should be used when the expected value is below 5 percent.

Ignoring Tempering Temperature Effects

Some engineers focus entirely on the quench but overlook how tempering temperature affects retained austenite. Higher tempering temperatures cause more austenite to decompose, but also reduce hardness. The balance must be calibrated against the application. Testing retained austenite at different temper temperatures during process development is good engineering practice.

Not Accounting for Sample Location

On a CAM lobe, the contact surface and the flank experience different stress histories. Retained austenite should be measured from a location representative of the critical contact region, not from a machined coupon from the parent bar unless the objective is incoming material qualification.

How TCR Engineering Conducts Retained Austenite Testing on SAE 52100 CAM Samples

TCR Engineering Services Pvt. Ltd. has been providing materials testing services to Indian industry for over 50 years. The retained austenite testing procedure for Q&T treated SAE 52100 CAM components follows a structured protocol to ensure accuracy, repeatability, and traceability.

Step 1: Sample Receipt and Documentation

Every sample received is logged with its drawing reference, heat treatment record (where provided by the client), and the specific test parameters requested. The test engineer reviews the expected retained austenite range before selecting the method and preparation approach.

Step 2: Metallographic Preparation with Electro-Polish

The sample is sectioned at the appropriate location, mounted, and ground to the target surface. Electropolishing is performed to remove the deformed surface layer created by grinding and polishing. This ensures the phase contrast visible under the microscope reflects the true material condition.

Step 3: Copper Deposition for Phase Contrast Enhancement

A controlled copper deposition step is carried out to enhance the contrast between retained austenite (which appears lighter) and martensite (which appears darker) under optical illumination. This step is particularly important in high-carbon steels like SAE 52100 where the natural etching contrast between phases can be insufficient for reliable image analysis.

Step 4: Optical Microscopy and Image Capture

The prepared surface is examined under an optical microscope at an appropriate magnification. A minimum of five representative frames are captured from locations distributed across the sample surface, avoiding artefacts, voids, or carbide clusters that would bias the result.

Step 5: Image Analysis Software Calculation

Each captured frame is processed through calibrated image analysis software. The software identifies and segments the austenite phase based on grey-level thresholding established during calibration. The area fraction from each frame is computed, and the results are averaged to give the reported retained austenite volume percent.

Step 6: Report Generation with Photographic Evidence

The test report includes the average retained austenite value, the individual field measurements, representative photomicrographs showing the microstructure and phase distribution, the sample preparation method used, and the applicable standard or in-house procedure followed. Clients receive full traceability on every report.

When to Use XRD Instead of Image Analysis for Retained Austenite

For projects where XRD is specified or required, TCR Engineering offers X-ray diffraction-based retained austenite measurement as an independent service. XRD is recommended in the following situations:

• Retained austenite specification is below 5 percent by volume

• The component is being qualified against ASTM E975 or an equivalent international standard

• High-value or safety-critical components where measurement uncertainty must be minimised

• A dispute resolution or third-party audit situation where method traceability is required

• Research and development work quantifying the effect of heat treatment parameters on austenite retention

Both methods are complementary. Many engineering projects benefit from XRD for initial process qualification and image analysis for ongoing production monitoring. TCR Engineering advises clients on the appropriate combination based on their quality plan and the criticality of the component.

Retained Austenite Limits in Standards and How They Apply to SAE 52100 CAM Components

Understanding what the standards say is as important as understanding the measurement method. The following provides a practical orientation for engineers specifying or reviewing retained austenite test requirements.

ASTM E975

This standard covers the XRD method for measuring retained austenite in steel. It defines the procedure for selecting diffraction peaks, correcting for background, and calculating volume fractions. Test laboratories should follow E975 when XRD results are required to be method-traceable.

ISO 13665 and ISO 9443

These standards relate to magnetic particle and surface integrity requirements for bearing components and include references to microstructural quality parameters. Retained austenite limits for bearing steel are often drawn from these and related documents.

Application-Specific Limits

In practice, retained austenite limits for SAE 52100 components in bearing and CAM applications are often set by the OEM or by the applicable drawing note rather than a single universal standard. Typical values range from a maximum of 8 percent for premium precision bearings to 15 percent for less demanding contact fatigue applications. Engineers should always confirm the limit specified in their applicable design document.

Why Retained Austenite Control Matters for Long-Term Component Reliability

Beyond the immediate test result, retained austenite control is a process health indicator. A consistent retained austenite value across a production batch tells the metallurgist that the austenitising temperature, quench rate, and tempering cycle are all in control.

A sudden shift in retained austenite, even if still within the specification limit, is a signal worth investigating. It may indicate:

•        A change in furnace atmosphere or temperature uniformity

•        A deviation in quench medium temperature or agitation

•        Incoming material variation in carbon or alloy content

•        A change in part geometry affecting quench rate (thicker sections cool more slowly)

For CAM manufacturers supplying to automotive or industrial machinery OEMs, documenting retained austenite measurement as part of a control plan is increasingly expected. It provides the objective evidence that the heat treatment process is delivering the intended microstructure, consistently and traceably.

TCR Engineering's detailed test reports, complete with photomicrographs and field-by-field data, give quality and reliability engineers the documentation they need for PPAP submissions, customer audits, and internal quality records.

Frequently Asked Questions

Q1. What is retained austenite in SAE 52100 steel?

Retained austenite is the fraction of austenite (the high-temperature FCC phase) that does not transform to martensite during quenching. In SAE 52100, the high carbon and chromium content lower the martensite finish temperature, often below room temperature, leaving a measurable fraction of austenite in the final microstructure after quench and temper treatment.

Q2. What is an acceptable retained austenite percentage for a Q&T treated SAE 52100 CAM?

Acceptable limits depend on the application and the applicable drawing or standard. For precision bearing and CAM applications, most specifications set a maximum between 8 and 15 percent by volume. Always verify the limit in your component drawing or customer quality requirement.

Q3. Which method is better for measuring retained austenite: image analysis or XRD?

Both methods are valid. Image analysis (microscopy) is reliable for retained austenite above 5 percent and provides useful microstructural context. XRD is more accurate, method-traceable to ASTM E975, and suitable for values below 5 percent. The right choice depends on your specification threshold, the stage of the production cycle, and any method requirements from your customer.

Q4. Why is electropolishing used in retained austenite testing by microscopy?

Electropolishing removes the thin deformed surface layer created by mechanical grinding and polishing. This deformed layer can trigger martensite transformation in surface-adjacent retained austenite, giving a falsely low reading. Electropolishing ensures the prepared surface reflects the true bulk microstructure of the sample.

Q5. Can retained austenite cause a CAM component to fail in service?

Uncontrolled retained austenite above specification limits can cause stress-induced martensitic transformation during service, leading to local volume expansion, dimensional instability, subsurface fatigue cracking, and surface spalling. This is why accurate measurement and control of retained austenite is an engineering requirement, not just a QC exercise.

Q6. How many fields are measured in image analysis for retained austenite?

TCR Engineering measures a minimum of five representative fields per sample and reports the average retained austenite value. Fewer fields give statistically unreliable results due to the natural variation in phase distribution across the microstructure.

Q7. What sample size is required for retained austenite testing at TCR Engineering?

Sample size requirements vary depending on the geometry of the component and the test method. TCR Engineering provides specific guidance on sample size and preparation requirements based on the component submitted. Clients can enquire directly for details relevant to their specific part geometry.

Q8. Does tempering affect retained austenite levels in SAE 52100 steel?

Yes. Higher tempering temperatures cause more retained austenite to decompose to tempered martensite and carbides. However, this also reduces hardness. The heat treatment engineer must balance retained austenite content against hardness requirements for the specific application.

TCR Engineering: Reliable Retained Austenite Testing for Indian Industry

Retained austenite measurement in SAE 52100 steel is not a simple tick-box test. It requires appropriate sample preparation, the right measurement method, a sufficient number of measurement fields, and clear, traceable reporting that engineers and quality teams can act on.

TCR Engineering Services Pvt. Ltd. brings over 50 years of materials testing experience to this work. Our metallurgists, including specialists in heat treatment microstructure and XRD-based analysis like Dr. Ajay Essampally, approach every sample with the rigour that precision engineering demands.

For CAM manufacturers, bearing producers, and component suppliers working with Q&T treated SAE 52100 steel, accurate retained austenite data is an input to product quality, process control, and customer confidence. TCR Engineering is equipped to support this requirement at every stage of the product lifecycle, from incoming material qualification to production batch testing to failure investigation.

Retained austenite measurement in SAE 52100 steel is a precision requirement, and the testing partner you choose for this work directly influences the reliability of the data your engineering decisions rest on.
