Why Your Aluminium Powder Coating Needs an Acetic Acid Salt Spray (AASS) Test for 720 Hours

When you're specifying aluminium powder coatings for projects in coastal areas, high-humidity zones, or industrial environments, there's always that nagging question in the back of your mind: will this coating actually hold up when the salt spray hits? TCR Engineering understands this concern, which is exactly why they've invested in comprehensive Acetic Acid Salt Spray (AASS) testing capabilities that go beyond standard testing protocols. Picture this scenario that plays out across India's coastal belt every monsoon season: a beautifully powder-coated aluminium facade, installed just eighteen months ago, now showing bubbles, rust spots bleeding through, and that telltale white corrosion creeping from every edge and fastener point. The client is furious, the contractor is scrambling, and everyone's pointing fingers about who specified what. This nightmare scenario happens more often than anyone in the industry wants to admit, and it usually comes down to one thing—the coating was never properly tested for the environment it would face.

Understanding What Makes AASS Testing Different from Regular Salt Spray

Here's something most people don't realize until they've had a coating failure on their hands: not all salt spray tests are created equal. The standard neutral salt spray test as per ASTM B117 that everyone talks about? It's good, it's a baseline, but it doesn't tell the whole story. When TCR Engineering talks about Acetic Acid Salt Spray (AASS) testing for 720 hours, they're talking about something significantly more aggressive and realistic. The acetic acid addition drops the pH to around 3.1-3.3, which mimics what actually happens in real-world coastal and industrial atmospheres where sulphur dioxide, nitrogen oxides, and other industrial pollutants mix with sea salt. Think about it like this: neutral salt spray is like testing your waterproof jacket in a gentle rain, while AASS testing is like throwing it into a tropical storm with acid rain for an entire month straight.

TCR Engineering conducts these extended duration tests in their NABL-accredited facility, following both international standards like DIN ISO 9227 and Indian standards like IS 6910. The NABL accreditation isn't just a certificate on the wall—it means every test report carries legal validity, can be submitted for government projects, meets ISO/IEC 17025 requirements, and gives you defendable data if specifications are ever questioned. When you're dealing with projects where coating failure could mean lakhs or crores in remedial work, having that NABL stamp matters tremendously.

The Rigorous Evaluation Criteria TCR Engineering Tests Against

When your aluminium powder coating sample goes into TCR Engineering's test chamber for those 720 hours of continuous exposure, it's not just sitting there getting wet. The testing protocol evaluates multiple failure modes simultaneously, each one capable of ruining your project's aesthetics and structural integrity. The evaluation criteria they work with are exactly what serious specifiers and quality managers demand. Let's break down what's actually being measured and why each parameter matters in the real world.

Corrosion in the score area gets evaluated because every fabricated aluminium component will have cut edges, drilled holes, or mechanical damage at some point in its life. The question isn't whether your coating looks perfect on an untouched flat panel—it's whether corrosion will creep underneath the coating from any breach point. TCR Engineering's technicians create standardised scribe marks on test panels before exposure, then measure how far the corrosion creeps from those deliberately damaged areas. If you've ever seen aluminium window frames where white powdery corrosion is spreading from the corners and joints, you've seen what happens when a coating fails this test.

Degree of blistering to m0/g0 as per ISO 4628-2 means zero blistering of any size when evaluated under proper lighting. Blisters form when moisture penetrates through or around the coating and gets trapped at the metal-coating interface. In high-humidity environments like Mumbai, Chennai, or Kolkata, even microscopic coating defects can turn into visible bubbles within months if the coating hasn't been properly formulated and applied. The TCR Engineering evaluation uses standardised photographic references to ensure consistent assessment—there's no subjectivity involved when the standard says zero blistering means zero blistering.

Degree of rusting to Ri0 as per ISO 4628-3 is equally uncompromising—it means absolutely no rust spots anywhere on the panel. Not even the tiny pin-prick sized spots that people sometimes try to dismiss as "minor surface oxidation." Aluminium doesn't rust in the traditional sense since it's not ferrous metal, but it does corrode, forming white aluminium oxide. However, if there are any steel fasteners, backing structures, or if iron contamination occurred during fabrication, you'll see actual rust. Either way, Ri0 means pristine performance.

Cross-cut adhesion with GT ≤ 1 as per ISO 2409 tests whether the coating is actually stuck to the substrate or just sitting on top of it. After the 720-hour exposure, TCR Engineering's technicians make a grid of cuts through the coating down to the metal, then apply and remove standardised pressure-sensitive tape. If more than small flakes detach at intersections (which is what GT 1 allows), the coating has lost its grip. You've probably seen powder coatings that look fine until you accidentally chip them, then entire sheets peel away—that's failed adhesion, and it's absolutely critical to test for.

Loss of adhesion ≤ 2mm from the scribe mark takes this even further, measuring how far the coating can be peeled back from any damage point after exposure. If you can easily lift the coating more than 2mm away from a scratch or cut edge, moisture has undermined the adhesion and the coating will progressively fail in service.

Why 720 Hours Makes All the Difference

There's a massive difference between 240 hours of salt spray testing (which is common) and the 720 hours that TCR Engineering offers. Some coating suppliers will show you impressive test results from shorter duration tests, but corrosion is a progressive process that accelerates over time. Those first 240 hours might show minimal damage, but between 500-720 hours is often where you see dramatic differences between genuinely durable coating systems and ones that are just marginally acceptable. For architectural applications with expected service lives of 15-25 years in coastal environments, that extended test duration provides invaluable data. TCR Engineering has seen countless cases where coatings passed 500-hour tests with flying colours but showed significant degradation by 720 hours—exactly the kind of information you need before committing to a coating specification for a major project.

The Complete Testing Specification TCR Engineering Works With

When clients approach TCR Engineering for aluminium powder coating validation, they're typically working with detailed specifications like the example of EN AW 5754 H111 grade aluminium at 3mm thickness, pre-treated with chromate conversion coating, then powder coated with AkzoNobel Interpon D1036 GL RAL 7006 to 70 microns film thickness. Every one of these details matters tremendously for test results. The alloy grade determines base corrosion resistance—5754 is a magnesium alloy commonly used in marine applications because of its excellent corrosion resistance. The H111 temper designation tells you about the material's work-hardening state, which affects surface preparation quality. The chromate conversion pre-treatment creates a chemical conversion layer that dramatically improves both adhesion and corrosion resistance, though some specifications now use chromium-free alternatives for environmental reasons.

The powder itself such as AkzoNobel's Interpon D1036 GL RAL 7006, is a specific formulation designed for exterior durability with a semi-gloss finish in grey. The 70-micron thickness is substantial—many applications get by with 60 microns, but that extra 10 microns provides measurably better barrier protection and impact resistance. TCR Engineering's testing process accounts for all these variables and documents them precisely in the NABL-approved test report, so there's complete traceability from material specification through testing to final performance validation.

What Actually Happens During the Test Process

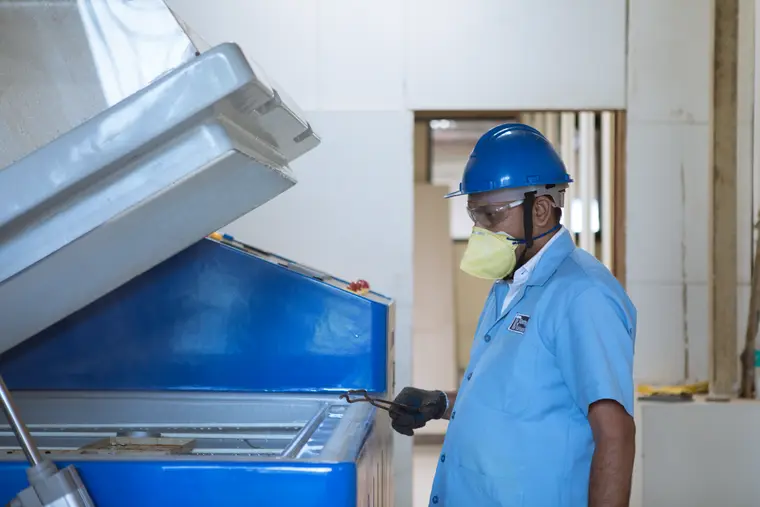

When your samples arrive at TCR Engineering's facility, they go through a documented intake process where every detail gets recorded—dimensions, coating thickness measurements at multiple points using calibrated gauges, visual inspection photographs, and verification that the scribe marks meet standard requirements. The panels then go into climate-controlled salt spray chambers where they're positioned at the precise 20-degree angle specified in the standards. The chamber continuously generates a fog of 5% sodium chloride solution with acetic acid addition to maintain that aggressive pH 3.1-3.3 environment. Temperature is maintained at 35°C ±2°C, and the solution fall-out rate is carefully controlled and monitored. These aren't random numbers—they're the result of decades of research correlating accelerated test conditions with real-world exposure data from coastal test sites around the world.

Every 24 hours, the chambers are opened briefly for inspection and to ensure the test is progressing properly. TCR Engineering's technicians check that the solution reservoirs are maintained, temperature and humidity parameters are stable, and solution pH hasn't drifted. After the full 720 hours, panels are carefully removed, rinsed with clean water to remove residual salt deposits, dried, and then evaluated. The evaluation itself takes significant expertise—properly identifying and rating blistering, corrosion, and adhesion loss against international standards requires trained eyes and proper equipment. That's why NABL accreditation matters—it verifies that the people doing the evaluation and the methods they're using meet international competency standards.

Real-World Applications Where This Testing Proves Essential

Think about where aluminium powder coating really gets tested in Indian conditions. Coastal infrastructure projects in cities like Visakhapatnam, Kochi, or Goa where sea spray is a constant reality. Industrial facility cladding in chemical processing zones where atmospheric contaminants accelerate corrosion. Metro rail systems with stations just kilometres from the sea. Commercial building facades that need to look good for decades without expensive recoating. Automotive components that face both road salt in northern regions and humidity in the south. Every single one of these applications benefits enormously from proper pre-qualification testing, and TCR Engineering's extended duration AASS testing is exactly what separates reliable long-term performance from premature failure.

Consider a real scenario that plays out regularly: a developer is choosing between two powder coating systems for a prestigious seaside resort project. System A costs ₹85 per square foot, System B costs ₹72 per square foot. Without proper testing data, the temptation is obvious—save 15% on coating costs across thousands of square feet of aluminium cladding. But when both systems go through TCR Engineering's 720-hour AASS test, System A passes every criterion while System B shows blistering at m3/g3 and corrosion creep of 4mm from scribe marks. Fast forward three years, and System B would need complete recoating at ₹120 per square foot due to widespread failure, plus reputation damage and potential legal issues. The testing investment of perhaps ₹25,000 to ₹40,000 for comprehensive evaluation would have saved literally lakhs of rupees in remedial costs.

How TCR Engineering's NABL Accreditation Protects Your Project

The NABL accreditation that TCR Engineering maintains for their salt spray testing isn't just bureaucratic paperwork. When test reports carry the NABL logo, they're legally admissible, meet requirements for government contracts and tenders, satisfy international quality management system audits, and provide defensible evidence if warranty claims or disputes arise. Many coating suppliers will show you test certificates from their own laboratories or from non-accredited facilities, and while those tests might follow proper procedures, they don't carry the same weight. For projects where coating failure could result in significant costs or safety issues, having NABL-backed test data is fundamental due diligence.

TCR Engineering maintains their accreditation through regular proficiency testing, equipment calibration to national standards, documented quality procedures, and periodic surveillance audits by NABL assessors. This means you can trust that the test results you receive aren't just accurate for that one test—they're consistently reliable across every test they conduct. The test reports themselves follow standardised formats that clearly present all relevant data: test parameters, evaluation methods, detailed results for each criterion, photographic evidence, and clear pass/fail statements against your specified requirements.

Beyond Salt Spray: TCR Engineering's Comprehensive Approach

While salt spray testing is critical for coastal and industrial applications, TCR Engineering's capabilities extend across the complete spectrum of coating evaluation. They understand that real-world coating performance depends on multiple factors, which is why they offer complementary testing including accelerated weathering for UV and moisture resistance, impact and abrasion resistance testing, chemical resistance evaluation, and thermal cycling to assess coating flexibility. For projects with comprehensive durability requirements, combining AASS testing with these additional evaluations provides a complete performance picture. A coating might sail through 720 hours of salt spray but crack and peel after a few years of UV exposure and thermal cycling, or it might show excellent weathering resistance but fail when exposed to the specific chemicals present in an industrial environment.

Making the Testing Investment Decision

When TCR Engineering discusses testing with potential clients, the conversation often starts with concerns about cost and timing. Testing programmes that run for 720 hours obviously take at least a month just for the exposure phase, plus preparation time before and evaluation time after. The investment might seem substantial when you're comparing it to simply accepting a coating supplier's generic test certificate. But here's what that perspective misses: the testing investment is almost always microscopic compared to the total project value and completely insignificant compared to potential failure costs. A comprehensive testing programme through TCR Engineering might cost ₹30,000 to ₹50,000 depending on the number of samples and evaluation criteria, while coating failure on even a modest-sized architectural project could easily run into ₹15-20 lakhs for remedial work, not counting business disruption, reputation damage, and legal costs.

The other consideration is that once you've validated a complete coating system—specific alloy, pre-treatment, powder coating product, and application process—that validation data is reusable for future projects using the same specification. Many of TCR Engineering's clients establish approved coating systems through thorough testing, then specify those systems across their entire project portfolio, knowing they have solid performance data backing up their decisions.

Getting Started with TCR Engineering's Testing Services

The process of working with TCR Engineering for salt spray testing is straightforward. Initial discussion typically covers your project requirements, exposure environment, performance expectations, and any specific standards or specifications you need to meet. They'll advise on appropriate test duration (720 hours for severe coastal/industrial exposure, potentially shorter for less aggressive environments), evaluation criteria that match your application, and sample size and preparation requirements. For the example specification mentioned earlier with EN AW 5754 aluminium, chromate conversion, and Interpon D1036 GL powder coating, they'd need representative panels properly prepared and coated by your specified process, typically multiple panels to allow for statistical variation and potential retesting if needed.

TCR Engineering provides detailed quotations that break down all costs transparently—testing fees, any special requirements, and report preparation. Their NABL-approved reports are thorough documents that you can submit to clients, include in technical specifications, use for quality assurance documentation, or reference in warranty claims or legal proceedings if necessary. The team understands that coating performance data often needs to satisfy multiple stakeholders—project owners, architects, quality managers, and sometimes regulatory authorities—so reports are prepared with clarity and completeness in mind.

Why Coating Failures Happen and How Testing Prevents Them

After years of investigating coating failures across India's diverse environments, certain patterns emerge repeatedly. Inadequate surface preparation where oils, oxides, or contaminants prevent proper adhesion ranks as perhaps the most common cause. Insufficient coating thickness where cost-cutting leads to 40-50 micron coatings being specified for environments that really need 70-80 microns. Incompatible pre-treatment and powder combinations where the surface chemistry doesn't provide proper bonding. Poor cure conditions where powder isn't properly cross-linked due to incorrect oven temperature or dwell time. Substrate contamination from inadequate storage or handling. Each one of these issues shows up loud and clear when samples go through rigorous testing like TCR Engineering's 720-hour AASS protocol. The beauty of proper testing is that it identifies these problems with sample panels that cost hundreds of rupees, not with installed components that cost lakhs to replace.

Some coating failures are more insidious because they don't appear immediately. A coating might look perfect for the first year, passing visual inspections and satisfying everyone involved, but by year two or three, progressive corrosion that started from microscopic defects has developed into visible damage. By year five, you're looking at comprehensive failure requiring complete remedial work. This is exactly why extended duration testing through facilities like TCR Engineering is so valuable—it compresses years of exposure into weeks of testing, revealing potential problems before they become expensive realities.

Industry Standards and Why They Matter

The specific standards that TCR Engineering tests against—ASTM B117 for salt spray, DIN ISO 9227 for acetic acid salt spray, IS 6910 for Indian standard salt spray testing, and the ISO 4628 series for coating evaluation—represent decades of industry experience distilled into testable procedures. These aren't arbitrary requirements invented by committees to make life difficult. They're the result of extensive research correlating accelerated test conditions with long-term field exposure data. When a standard like ISO 4628-2 defines what constitutes m0/g0 blistering or ISO 4628-3 defines Ri0 rust rating, those definitions are based on what actually matters for coating performance and durability in service.

Different applications and industries often have their own preferred standards and acceptance criteria. Architectural applications might reference AAMA specifications, automotive applications might cite OEM standards, industrial applications might require NACE or SSPC criteria. TCR Engineering's experience across these various standards means they can help navigate which testing approach best suits your particular application and provide test results that satisfy your specific industry's requirements.

Frequently Asked Questions About Salt Spray Testing

How long does AASS testing actually take from start to finish? The exposure phase itself runs for 720 hours, which is exactly 30 days of continuous testing. However, you need to account for sample preparation time before testing (typically a few days for panels to be properly cleaned and scribed), scheduling time to get samples into a chamber cycle, and evaluation time after testing (typically 2-3 days for thorough assessment and report preparation). Realistically, you're looking at about 5-6 weeks from the time TCR Engineering receives your samples to when you receive the final NABL-approved test report. This timeline is fairly standard for extended duration testing and reflects the rigorous process required for reliable, defendable results.

Can we test multiple coating systems simultaneously to compare performance? Absolutely, and this is actually one of the most valuable uses of AASS testing. Many of TCR Engineering's clients submit panels representing different coating systems, suppliers, or process variations in the same test run. This provides direct, apples-to-apples comparison data under identical exposure conditions. The cost per additional sample is typically much lower than running separate tests, and having comparative data makes specification decisions much easier. You can literally see which coating system performs better rather than trying to compare test results from different laboratories conducted at different times.

What happens if our coating fails the test? First, TCR Engineering's report will document exactly where and how the coating failed—which evaluation criteria weren't met and how far from acceptable the results were. This diagnostic information is valuable for understanding whether the problem is formulation-related, application-related, or substrate-related. Many coating issues can be resolved through adjustment of process parameters, improved surface preparation, increased film thickness, or switching to a more durable powder formulation. Failed tests aren't the end of the road—they're learning opportunities that prevent much more expensive failures after installation. TCR Engineering can often provide insights based on the failure mode that help direct corrective actions.

Is 720-hour testing overkill for interior applications? Yes, definitely. The 720-hour Acetic Acid Salt Spray (AASS) test is specifically designed for components that will face harsh coastal or industrial environments with significant salt exposure. For interior architectural applications, even in high-humidity areas, standard neutral salt spray testing for 240-500 hours is typically sufficient. TCR Engineering can recommend appropriate test duration based on your specific exposure environment. Testing for longer than necessary doesn't provide additional useful information and adds unnecessary cost and timeline to your project. The key is matching test severity to actual service conditions.

How do we know what our samples should be like for testing? Sample preparation is critical for meaningful test results. TCR Engineering provides clear guidance on panel size (typically 150mm x 100mm is standard, though larger panels can be accommodated), quantity needed (usually minimum of three panels per coating system to allow for statistical variation), surface preparation requirements (panels should be prepared exactly as production components would be), coating application details (same powder, same film thickness range, same cure schedule as you'll use in production), and scribe mark location and dimensions per the relevant standard. The samples need to represent what you'll actually produce—testing perfectly prepared laboratory samples doesn't tell you much if your production process is different.

Can testing be expedited if we have an urgent deadline? Salt spray testing, by its nature, requires the specified exposure time—you can't meaningfully shorten 720 hours of exposure without compromising the test validity. However, TCR Engineering can often accommodate priority scheduling to start testing quickly once samples arrive, and they can provide preliminary observations during the test if needed. For projects with tight timelines, the best approach is to plan testing early in the project schedule rather than waiting until the last minute. Some clients conduct pre-qualification testing with representative samples during the design phase, well before production begins, so coating system selection is already validated when fabrication starts.

The reality is that when you're specifying aluminium powder coatings for projects where durability matters and failure costs are high, comprehensive Acetic Acid Salt Spray (AASS) testing for 720 hours through an NABL-accredited facility like TCR Engineering isn't an optional luxury—it's fundamental due diligence that protects everyone involved from costly surprises down the road.
