TCR Engineering Becomes India's First Commercial Lab Accredited by BIS for IS 16172 Rebar Coupler Testing
- 4 hours ago
- 7 min read
IS 16172 rebar coupler testing in India just reached a new milestone — and it happened quietly, the way most things in quality assurance do.

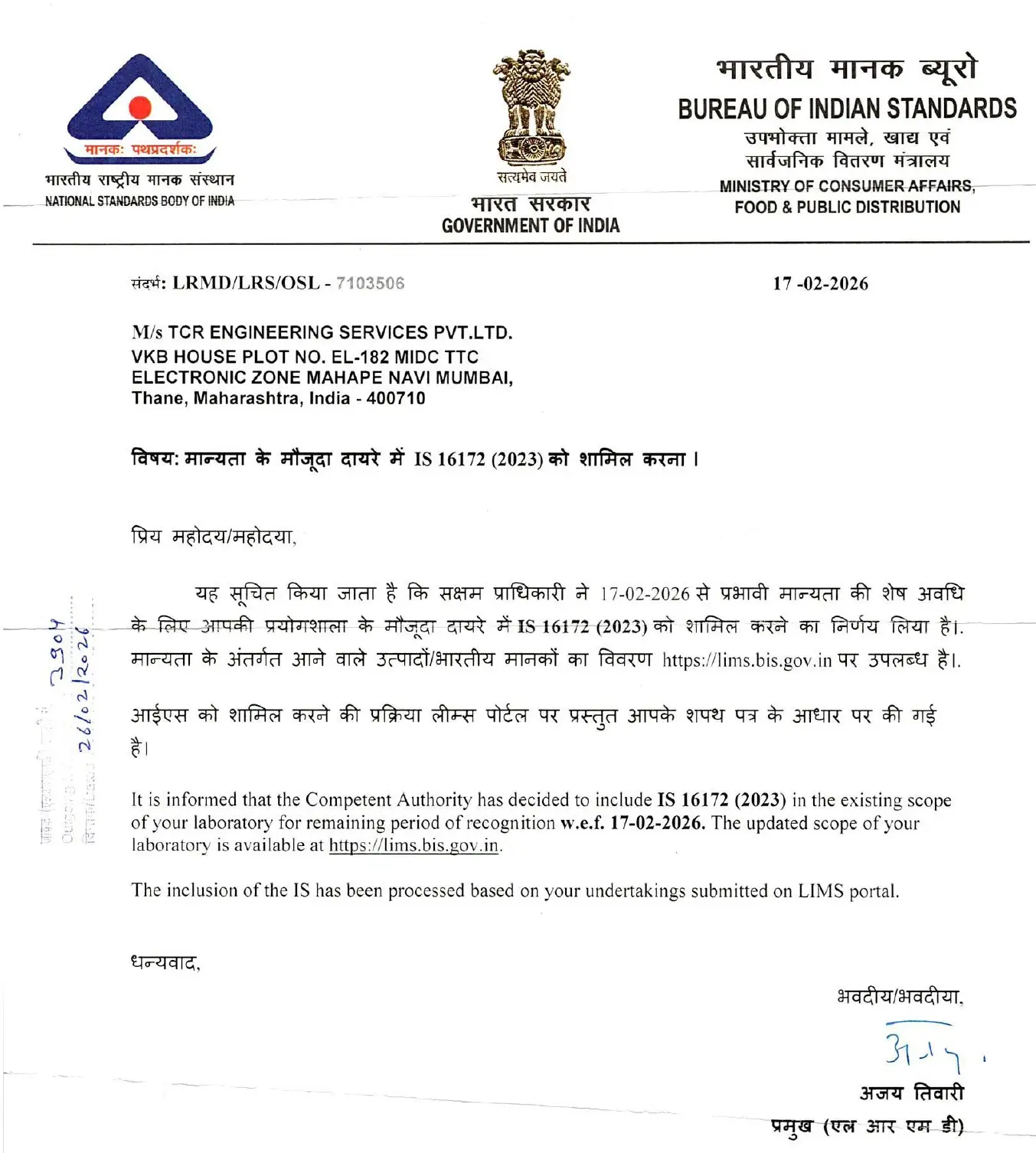

The Bureau of Indian Standards has expanded TCR Engineering's accreditation scope to include complete testing as per IS 16172:2023, the Indian Standard for Reinforcement Couplers for Mechanical Splices of Steel Bars in Concrete. TCR is now the first and only commercial laboratory in India to hold this accreditation.
For coupler manufacturers, infrastructure project owners, and procurement teams sourcing mechanical splices for critical structures, this matters. It means there is now an independent, NABL-accredited, BIS-recognised facility that can test rebar couplers to the full requirements of IS 16172 — and issue results that carry regulatory weight.
What IS 16172:2023 Actually Requires
IS 16172 governs the performance of mechanical splices used to join reinforcement bars in concrete structures. These couplers are not decorative components. They carry the same tensile and fatigue load as the rebar itself, and in seismic zones, in high-rise frames, or in critical infrastructure like elevated rail corridors, failure at a splice joint is not a recoverable situation.
The standard covers a complete range of tests across the full diameter spectrum — from 16mm up to 40mm rebar sizes. The testing scope TCR is now accredited for under BIS includes:
Tensile Strength (Clause 9.2.1) — verifying that the coupler assembly meets minimum tensile requirements for its rebar diameter
Disengagement Test for Threaded Couplers (Clause 9.2.1.1) — confirming that threaded connections do not separate under load
Percentage Elongation (Clause 9.2.2) — measuring ductility of the splice assembly
Slip Test (Clause 9.3) — testing relative movement between bar and coupler under load, conducted on sets of three specimens
Cyclic Tensile Test (Clause 9.4) — subjecting couplers to repeated loading cycles, simulating real dynamic stress conditions
Low Cycle Fatigue Test (Clause 9.5.1) — high-amplitude, low-frequency loading representative of seismic or sudden impact conditions
High Cycle Fatigue Test (Clause 9.5.2) — sustained cyclic loading over extended periods, relevant to infrastructure carrying live traffic or wind loads
The fatigue tests, particularly high cycle fatigue, are the most demanding. Running up to 40mm specimens through the full high cycle protocol is not something most labs have the setup — or the accreditation — to do. TCR's dedicated coupler and rebar fatigue testing facility has been built specifically for this class of testing.
Why This Accreditation Was Worth Pursuing
India's construction sector has been scaling rapidly, and the standards infrastructure around it has had to keep pace. The BIS accreditation for IS 16172 closes a gap that coupler manufacturers have faced for years — the absence of an independent, commercially accessible lab that could run the full test suite and issue results recognised by BIS, project consultants, and government clients.
Seema Rajpure, Head of Quality Assurance at TCR Engineering, describes what this accreditation represents operationally:
"Holding BIS accreditation for IS 16172 means that every test we run on a rebar coupler is traceable, standardised, and independently verifiable. For manufacturers seeking BIS certification for their products, and for project owners who need third-party validation, we can now be that single qualified source in the commercial laboratory space."
That confidence comes from the infrastructure behind it. TCR's lab operates under ISO 17025 and NABL accreditation, with quality systems governed by the same rigour applied to its mechanical testing and fatigue and fracture toughness work for defence, oil and gas, and infrastructure clients.
Hemant Sakpal and the Industry Work Behind the Accreditation
Accreditations like this do not happen in isolation. They require sustained engagement with industry — understanding what manufacturers need, what project specifications demand, and where the gaps in the testing ecosystem actually sit.
Hemant Sakpal, Business Development Manager at TCR Engineering, was instrumental in driving this accreditation forward and helping manufacturers get their product ISI-ready. His work with rebar and coupler manufacturers across India identified IS 16172 as a critical gap in the commercially available testing landscape, and he led the business-side effort to close it.
"Coupler manufacturers have been asking for a reliable, accredited facility to test IS 16172 for some time. Our clients needed results they could take to BIS, to project owners, and to international buyers. Now they have that option."
Hemant's current work also includes projects at the intersection of infrastructure ambition and coupler performance. TCR is approved for testing on India's high speed rail project, where mechanical splices are a critical structural element and testing documentation requirements are stringent. He also works with manufacturers who test their products to ISO 15630-1, serving export and international compliance requirements alongside domestic IS standards.
For international manufacturers or suppliers looking to demonstrate compliance with Indian standards as part of a third-party inspection process for imported construction materials, TCR's BIS recognition adds another layer of credibility to the test results.

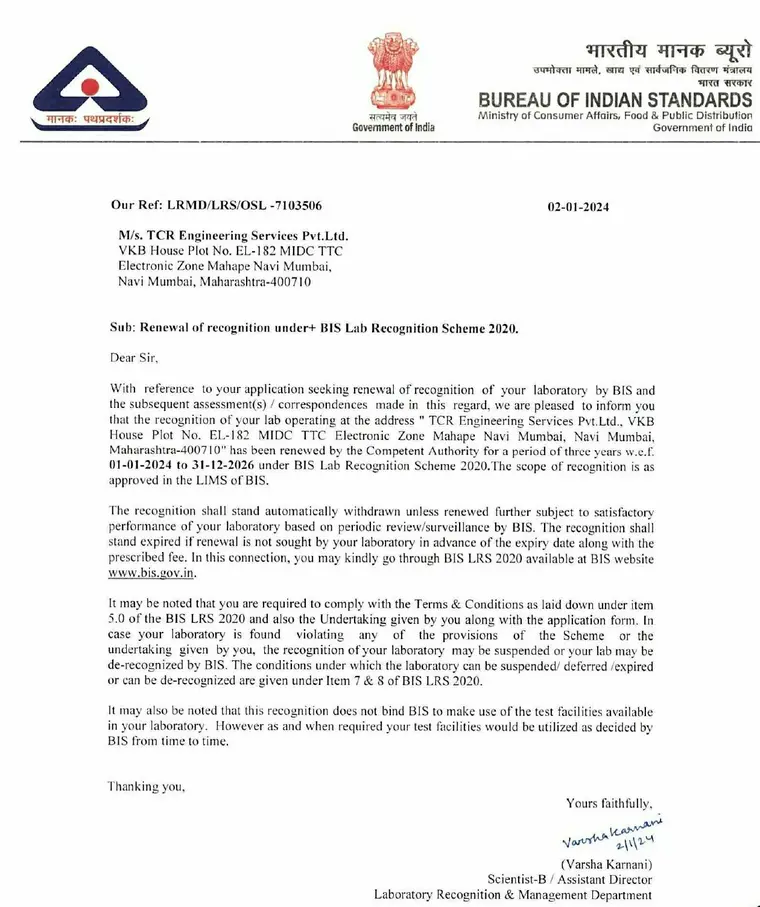

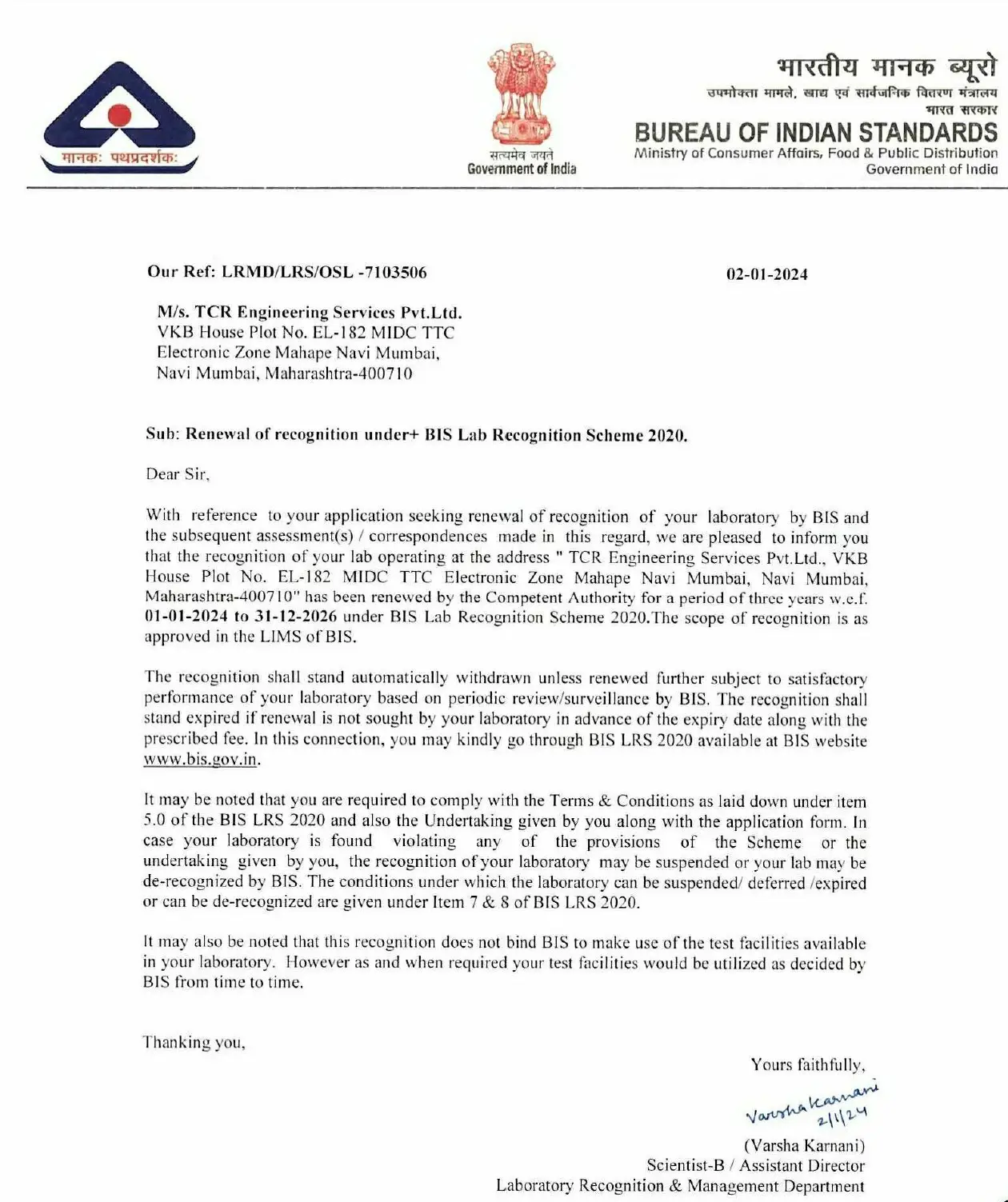

TCR as a BIS Recognised Laboratory
TCR Engineering is a BIS Recognised Laboratory. Its full, current scope of BIS accreditation is published and publicly verifiable at https://lims.bis.gov.in/home_lab_scope/253/.
BIS — the Bureau of Indian Standards — is India's national standards body, established under the BIS Act 2016 and operating as the successor to the Indian Standards Institution, which was founded in 1947. Its mandate covers the harmonised development of standardisation, conformity assessment, and quality assurance across goods, processes, systems, and services. A BIS-recognised laboratory designation means the lab has been evaluated and approved by BIS to conduct testing in support of product certification and compliance under Indian Standards.
For procurement teams, project owners, and quality managers, BIS recognition is the meaningful marker. It is what allows test results to feed directly into the BIS product certification process.
Beyond IS 16172, TCR's BIS-recognised scope includes testing across a wide range of Indian Standards:
IS 1786:2008 — High strength deformed steel bars and wires for concrete reinforcement
IS 16651:2017 — High strength deformed stainless steel bars and wires for concrete reinforcement
IS 2062:2011 — Hot rolled medium and high tensile structural steel
IS 513 (Parts 1 and 2):2016 — Cold reduced carbon steel sheet and strip
IS 1079:2017 — Hot rolled carbon steel sheet, plate and strip
IS 3589:2001 — Steel pipes for water and sewage
IS 17875:2022 — Stainless steel seamless pipes and tubes for general service
IS 17876:2022 — Stainless steel welded pipes and tubes for general service
IS 15103:2002 — Fire resistant steel
IS 2501:1995 — Solid drawn copper tubes for general engineering purposes
IS 10773:1995 — Wrought copper tubes for refrigeration and air conditioning
IS 277:2018 — Galvanised steel strips and sheets
IS 21:1992 — Wrought aluminium and aluminium alloys for manufacture of utensils
IS 814:2004 — Covered electrodes for manual metal arc welding of carbon and carbon manganese steel
IS 1395:1982 — Low and medium alloy steel covered electrodes for manual metal arc welding
IS 2879:1998 — Mild steel for metal arc welding electrodes
IS 15769:2008 — Flux cored electrodes for gas shielded and self-shielded metal welding
This breadth makes TCR a practical choice for manufacturers seeking BIS product certification across steel, aluminium, copper, and welding consumable categories — particularly those looking for a single accredited facility to consolidate their testing requirements.
The Role of Couplers in Modern Infrastructure
Rebar couplers are not a recent innovation, but their use in Indian construction has expanded significantly as project complexity has grown. High-rise residential structures, metro rail viaducts, cable-stayed bridges, tunnels, and elevated highway corridors all carry conditions where lapping bars is either impractical or structurally inefficient. In congested reinforcement layouts, a mechanical splice makes construction faster and cleaner. In seismic design, it can mean the difference between a joint that holds and one that doesn't.
TCR has covered this in depth in its earlier technical piece on rebar coupler performance testing, including how the choice of test protocol affects what you actually learn about a coupler's behaviour under realistic loading.
The addition of IS 16172 accreditation now allows TCR to serve manufacturers and project teams whose specifications reference this Indian Standard directly — whether for domestic supply, BIS certification applications, or imported coupler products requiring third-party inspection before use on Indian projects.
Testing Rebar to IS 1786 Alongside Coupler Testing
Many coupler qualification programmes also require concurrent rebar testing. The coupler is only as meaningful as the bar it joins. TCR holds BIS accreditation for IS 1786:2008 and runs TMT rebar and coupler testing as part of an integrated qualification programme, covering tensile, bend, rebend, and fatigue requirements in a single facility visit.
This combined capability is particularly relevant for rebar coupler manufacturers seeking BIS product certification, where both the coupler and the rebar assembly may need to be tested together.
IS 16172 Rebar Coupler Testing at TCR
For manufacturers or project teams looking to initiate IS 16172 testing, TCR's team can advise on specimen preparation, sample size requirements, and the test sequence appropriate to your specific coupler type and diameter. TCR's sample size requirements are documented and available at the downloads section.
Enquiries can be directed to sales@tcreng.com or via phone at +91-9833530200. The lab is located at VKB House, Mahape, Navi Mumbai, and operates Monday to Saturday.
As India builds faster and taller, IS 16172 rebar coupler testing is one of the quiet enablers behind structures that are expected to perform for decades.
FAQ
What is IS 16172:2023? IS 16172:2023 is the Bureau of Indian Standards specification for Reinforcement Couplers for Mechanical Splices of Steel Bars in Concrete. It defines the performance requirements, test methods, and dimensional criteria for mechanical splices used in concrete reinforcement across rebar sizes from 16mm to 40mm.
Which tests does IS 16172 include? The standard covers tensile strength, disengagement testing for threaded couplers, percentage elongation, slip testing, cyclic tensile testing, low cycle fatigue, and high cycle fatigue. All tests are conducted on specimens appropriate to the rebar diameter being qualified.
Is TCR the only commercial lab in India accredited for IS 16172 testing? Yes. TCR Engineering is currently the first and only commercial laboratory in India to hold BIS accreditation for the complete testing scope under IS 16172:2023. The accreditation is verifiable at https://lims.bis.gov.in/home_lab_scope/253/
Why is BIS accreditation important for rebar coupler testing? BIS recognition means test results are issued by a laboratory that has been formally evaluated and approved by the Bureau of Indian Standards. Results from a BIS-recognised lab can be directly used to support BIS product certification applications, project QA documentation, and regulatory compliance submissions.
Can TCR test couplers alongside rebar to IS 1786? Yes. TCR holds BIS accreditation for IS 1786:2008 (high strength deformed steel bars and wires for concrete reinforcement) and can run combined rebar and coupler testing programmes, covering both IS 1786 and IS 16172 requirements in a single engagement.
What rebar diameters does TCR test under IS 16172? TCR tests the full range covered by the standard, from 16mm through to 40mm, including 20mm, 25mm, 32mm, and 36mm diameters.
Does TCR test imported couplers for compliance with Indian standards? Yes. TCR provides third-party inspection and testing services for imported construction materials, including rebar couplers, and can issue test reports supporting BIS and project owner compliance requirements.
Supporting Documents:
