CTOD Testing for Welding Electrodes: The Complete Guide to Fracture Toughness at -45°C

CTOD testing for welding electrodes isn't something most welding engineers think about ctod-testing-for-welding-electrodes-the-complete-guide-to-fracture-toughness-at-45-cuntil they're working on a project where failure isn't an option. Maybe it's a pipeline in the Arcctod-testing-for-welding-electrodes-the-complete-guide-to-fracture-toughness-at-45-ctic, offshore structures facing brutal winters, or pressure vessels that need to perform in sub-zero conditions. That's when the question hits—will your E7018 or E7018-1 electrodes actually hold up when temperatures drop to -45°C?

TCR Engineering has been running fracture toughness tests on welding electrodes for clients across India and internationally, and under the technical guidance of Avinash Tambewagh, the company has developed testing protocols that give engineers the confidence they need for critical applications. Because here's the reality—when you're working with welded joints in extreme conditions, knowing the CTOD (Crack Tip Opening Displacement) values isn't just good practice. It's the difference between safe operations and catastrophic failure.

Why CTOD Testing Keeps Welding Engineers Up at Night

Think about what happens to steel when temperatures drop significantly. The material becomes more brittle, and that small crack you might not worry about at room temperature can suddenly become a critical failure point at -45°C. For welded joints, this gets even more complicated because you've got three distinct zones—the weld metal, the heat-affected zone, and the base metal—all behaving differently under stress.

Tambewagh has seen projects where engineers assumed their electrode selection would be fine, only to discover during qualification testing that the fracture toughness wasn't adequate for the service conditions. It's an expensive lesson, especially if you've already started fabrication. That's why TCR Engineering's approach to CTOD testing focuses on getting it right the first time, with clear protocols that match real-world service conditions.

What Actually Happens During CTOD Testing

The test itself follows ISO 15653 and ISO 12135 standards, which are the global benchmarks for fracture toughness evaluation. But understanding the standards and actually conducting the test properly are two different things. Here's how TCR Engineering approaches it, step by step.

The Welding Procedure That Sets Everything Up

Before any testing can happen, you need welded test plates that accurately represent your actual welding conditions. This isn't about just slapping some electrodes on steel and calling it good. The welding procedure needs to match what's going to happen in production.

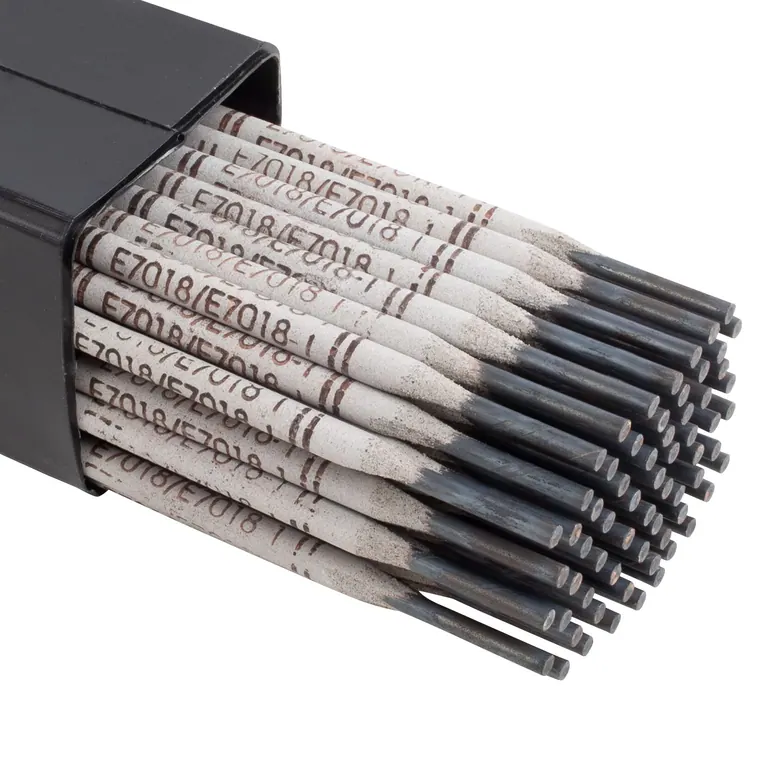

For E7018 and E7018-1 electrodes, TCR Engineering works with clients to document the complete welding procedure specification. This includes the welding current, voltage, travel speed, preheat temperature, interpass temperature, and post-weld heat treatment if applicable. The goal is to create weld metal that's representative of what you'll get in actual fabrication.

The test plates themselves need specific dimensions. TCR Engineering prepares plates that are 250mm x 25mm x 250mm, with the weld seam positioned right at the centre. That centre placement is critical because the test specimen will be extracted from the weld, and you need enough material on both sides to machine a proper test piece.

Specimen Preparation—Where Precision Really Matters

Once the welded plates are ready and any required post-weld heat treatment is completed, the specimen preparation begins. This is where things get technical, and it's where having experienced technicians makes all the difference.

The specimen type used is a CT (Compact Tension) specimen with a COD gauge length of 5mm and a straight notch. The machining has to be precise because any deviation in dimensions or notch geometry can affect the test results. The notch itself needs to be accurately positioned and machined to create the stress concentration that will drive crack growth during pre-cracking.

Here's something that catches a lot of people off guard. The pre-cracking phase happens at room temperature, not at the test temperature. This is important because you're trying to create a sharp, fatigue-grown crack that simulates a real defect. Doing this at room temperature gives you better control over the crack growth and ensures you get a sharp crack tip.

The pre-cracking is done using cyclic loading at controlled stress intensity levels. You're not trying to break the specimen—you're trying to grow a fatigue crack to a specific length. TCR Engineering's lab monitors the crack growth carefully, typically using compliance methods or visual techniques, to ensure the crack reaches the required length without overloading the specimen.

Testing at -45°C—The Real Challenge

This is where the rubber meets the road. After pre-cracking at room temperature, the specimen needs to be cooled to -45°C and tested at that temperature. Maintaining a stable -45°C throughout the test isn't trivial. You need a proper environmental chamber or cooling medium, and you need to verify that the specimen is actually at the target temperature before loading begins.

TCR Engineering uses temperature monitoring throughout the test to ensure the specimen stays within the required temperature range. The test itself involves loading the specimen in tension and measuring the crack tip opening displacement as the load increases. The CTOD value at a critical point—typically at crack initiation or at maximum load—gives you the fracture toughness measure you're looking for.

For E7018 electrodes being used in structural applications at low temperatures, you're typically looking for CTOD values that meet minimum requirements set by the relevant code or specification. If the values are too low, it means the weld metal is too brittle for the application, and you need to either change the electrode, modify the welding procedure, or reconsider the material selection.

Post-Test Metallography—When You Need to Understand Why

Sometimes a CTOD test gives you unexpected results. Maybe the value is lower than expected, or maybe there's scatter between different specimens. That's when post-test metallography becomes valuable.

Tambewagh always emphasizes that testing isn't just about getting numbers—it's about understanding material behaviour. Post-test metallography involves sectioning the tested specimen and examining the microstructure around the crack path. You're looking at things like grain size, inclusion content, the presence of any weld defects, and whether the crack propagated through the weld metal, the heat-affected zone, or the fusion line.

This kind of detailed examination can explain why a particular specimen performed the way it did. Maybe there was a small slag inclusion right at the crack tip. Maybe the heat-affected zone had an unexpected microstructure due to the thermal cycle. These insights don't just explain the test results—they help you improve the welding procedure or electrode selection for better performance.

The Numbers That Actually Matter

When TCR Engineering delivers a CTOD test report, you're getting more than just a pass or fail. The report includes the actual CTOD values, the temperature at which testing was conducted, the crack length measurements, and the load-displacement data. If post-test metallography was performed, you'll get photomicrographs and descriptions of what was observed.

For a typical CTOD test program on welding electrodes, including specimen preparation, pre-cracking, testing at -45°C, and basic reporting, you're looking at costs in the range of ₹75,000 to ₹175,000 per specimen depending on the specific requirements. If post-test metallography is added, that increases the cost, but the additional insights are often worth it when you're trying to qualify a critical welding procedure.

Real Talk About Testing Standards and Indian Welding

ISO standards are written for global applications, but Indian fabrication shops and welding procedures have their own characteristics. The ambient temperatures during welding might be different, the base materials might come from different suppliers, and the quality control practices vary.

That's where TCR Engineering's experience with both international standards and Indian welding practices becomes valuable. The team understands that a welding procedure that works perfectly in a controlled European fabrication shop might need adjustments when you're doing the same work in a fabrication yard in Gujarat during summer.

Tambewagh's approach has always been practical. Follow the standards rigorously, yes, but also understand the context of where and how the welding will actually be done. That practical wisdom helps clients get test results that are both compliant with international requirements and representative of actual fabrication conditions.

How to Actually Use CTOD Test Results

Getting CTOD values is one thing. Knowing what they mean for your project is another. Here's the practical breakdown that welding engineers and quality managers need to understand.

Acceptance Criteria: Most codes and specifications will have minimum CTOD values for different service categories. For applications involving low temperatures, these requirements get more stringent. Your E7018 electrode needs to meet or exceed these minimum values at the test temperature.

Comparison with Base Metal: Sometimes you'll test both the weld metal and the base metal to ensure the weld isn't the weak link. If the weld metal CTOD is significantly lower than the base metal, that's a flag that you might need to reconsider your consumable selection or welding parameters.

Effect of Welding Parameters: Changes in heat input, preheat, or post-weld heat treatment can all affect fracture toughness. If initial CTOD tests show marginal values, sometimes adjusting the welding procedure can improve the results without changing electrodes.

Questions Welding Engineers Are Actually Asking

Do we really need CTOD testing for every welding procedure?

Not necessarily. CTOD testing is typically required when you're working with thick sections, low-temperature service, high-stress applications, or when specified by the relevant code. For routine structural welding at ambient temperatures, other types of testing might be sufficient. But for critical applications—pipelines, pressure vessels, offshore structures—CTOD testing becomes non-negotiable.

Can we use E7018 and E7018-1 interchangeably?

The -1 designation indicates lower moisture pickup characteristics, which can be important for certain applications. But from a fracture toughness perspective, both should be qualified separately if they're going to be used interchangeably. Small differences in chemistry or manufacturing can affect low-temperature performance.

How many test specimens do we need?

For procedure qualification, you typically need at least three specimens to establish statistical validity. Some codes require more depending on the criticality of the application. TCR Engineering can advise on the specific requirements based on the applicable standard or code.

What if the CTOD values fail?

Failure isn't the end of the road—it's information. You can adjust the welding procedure, try different electrodes, modify the heat treatment, or reassess the service conditions. TCR Engineering works with clients to understand why a test failed and what options are available to achieve acceptable results.

How long does the complete testing take?

From receiving the welded test plates to delivering the final report, you're typically looking at 10 to 15 working days. This includes specimen preparation, pre-cracking, the actual CTOD test at -45°C, and report preparation. If post-test metallography is required, add another few days for specimen preparation and microscopic examination.

Can TCR Engineering handle the actual welding of test plates?

TCR Engineering focuses on the testing side, but the company works with clients to ensure the welding procedure and test plate preparation meet the requirements. If you have your own welding capabilities, TCR Engineering can provide the specifications for plate dimensions and welding. If you need assistance with welding, the team can recommend qualified welding services.

What about testing at other temperatures?

While -45°C is a common test temperature for Arctic or low-temperature service, CTOD testing can be done at other temperatures based on the actual service conditions. If your application requires testing at -60°C or -20°C, TCR Engineering's lab can accommodate that. The key is matching the test temperature to the minimum service temperature.

Is post-test metallography always necessary?

It's not always required, but it's often valuable. If you're doing initial qualification testing and want to understand the weld metal microstructure and how it affects fracture behaviour, metallography provides insights you can't get from the CTOD value alone. For routine production testing, you might skip it to save costs.

How does TCR Engineering's CTOD testing compare to international labs?

The testing follows the same ISO standards used globally, and the equipment and procedures are comparable to what you'd find in labs in Europe or North America. The advantage of working with TCR Engineering is the combination of international-standard testing with local availability and an understanding of Indian fabrication practices. Plus, the cost is typically more competitive than shipping specimens overseas.

Why Technical Expertise Matters More Than Equipment

Modern fracture mechanics testing equipment is sophisticated. Load cells are accurate to fractions of a Newton, displacement measurements are precise to micrometers, and environmental chambers can hold temperatures within tight tolerances. But here's what the equipment can't do—it can't interpret unexpected results, it can't spot specimen preparation errors, and it can't advise you on what to do when a test doesn't go as expected.

That's where having someone like Tambewagh reviewing the test program makes a real difference. He's not just running tests and generating data. He's looking at the results in the context of how the welded joint will perform in service, considering the fabrication realities, and providing guidance that helps clients make informed decisions.

The industry recognises this. When a major fabricator needs to qualify a critical welding procedure for a challenging application, they're not just looking for a lab that can run the test. They're looking for expertise they can trust, and that's what TCR Engineering delivers.

Moving Forward with Confidence in Critical Applications

At the end of the day, CTOD testing for welding electrodes is about ensuring that your welded structures will perform safely in the most demanding conditions. It's about knowing that when temperatures drop to -45°C and stresses are applied, that weld joint isn't going to be the failure point. For projects where lives and assets are on the line, that level of confidence isn't optional.

TCR Engineering's approach to fracture toughness testing, shaped by Tambewagh's technical leadership, is about delivering reliable results that engineers can base critical decisions on. It's about testing that follows international standards rigorously while remaining practical and accessible for Indian fabricators and project teams. For welding applications where fracture toughness really matters, that combination of technical excellence and practical wisdom is becoming increasingly essential.

If you're working on projects that require low-temperature performance validation for E7018 or other welding electrodes, TCR Engineering's materials testing division has the capability and expertise to support your qualification needs. Because in critical welding applications, there are no shortcuts to getting the fracture toughness fundamentals right.
