When 5 Million Cycles Determine If Your Railway Welds Will Survive 30 Years of Traffic

When a welded rail joint fails under a loaded freight train traveling at 80 km/h, the consequences cascade faster than anyone can react. The train derails. Cars pile up. Cargo spills. Lives are endangered. Investigation reveals what months of visual inspections never detected—microscopic fatigue cracks propagating through the weld zone, growing imperceptibly with each passing axle load until suddenly the accumulated damage reached critical size and catastrophic fracture occurred without warning. The weld that passed all acceptance tests during installation, that showed no visible defects during routine inspections, failed because nobody verified it could survive the millions of cyclic loads that define railway service life.

Here's what makes railway weld failures so devastating and why they catch railway operators unprepared. India's railway network carries billions of passengers and millions of tonnes of freight annually across tracks that must remain continuously serviceable despite relentless cyclic loading from passing trains. Each axle applies load, releases, applies again—creating stress cycles that accumulate fatigue damage in rail steel and welded connections. A single train with 50 axles creates 50 stress cycles. Multiply by hundreds of trains daily, and a busy section experiences millions of cycles annually. Materials that appear perfectly sound in static testing fail under this cyclic loading because fatigue mechanisms differ fundamentally from static overload—cracks initiate at stress concentrations, propagate incrementally with each cycle, and eventually reach critical size where sudden fracture occurs even though applied loads remain well below material yield strength.

TCR Engineering: Critical Railway Testing

Mr. Avinash Tambewagh, Technical Head at TCR Engineering Services based in Mumbai, India, oversees the laboratory's capability for railway track fatigue testing in accordance with the requirements of RDSO (Research Design and Standards Organisation)—the technical authority under India's Ministry of Railways responsible for establishing standards, approving materials and processes, and ensuring railway infrastructure meets safety and performance requirements.

The specific application driving this testing involves Weld Process Approval for Weldable Cast Manganese Steel (WCMS) Crossings using R-260 grade rails—a technically challenging combination where dissimilar materials must be joined reliably despite different mechanical properties, thermal expansion characteristics, and microstructures. Railway crossings experience particularly severe service conditions with impact loading from wheels transitioning between converging track paths, creating stress concentrations that accelerate fatigue damage compared to tangent track sections. The welds connecting WCMS crossing components to R-260 rails must survive these demanding conditions for decades without failure.

TCR's testing follows IRS:T-29 and IRS:T-19, the Indian Railway Standards that establishes requirements for fatigue testing of rail welds. This standard doesn't just specify running specimens until failure—it defines exact test protocols including sample preparation, loading schemes, frequency ranges, acceptance criteria, and documentation requirements that ensure testing realistically simulates service conditions and generates data that railway engineers can confidently use to approve welding processes for field implementation.

Understanding IRS:T-29 and IRS:T-19: The Standard That Validates Railway Welds

IRS:T-29 and IRS:T-19 establishes the framework for fatigue testing that determines whether welded rail joints possess adequate durability for railway service. The standard recognizes that railway welds face fundamentally different challenges than parent rail—the welding process creates heat-affected zones with altered microstructure, residual stresses from thermal cycling, and potential defects that might compromise fatigue resistance even when static strength meets requirements.

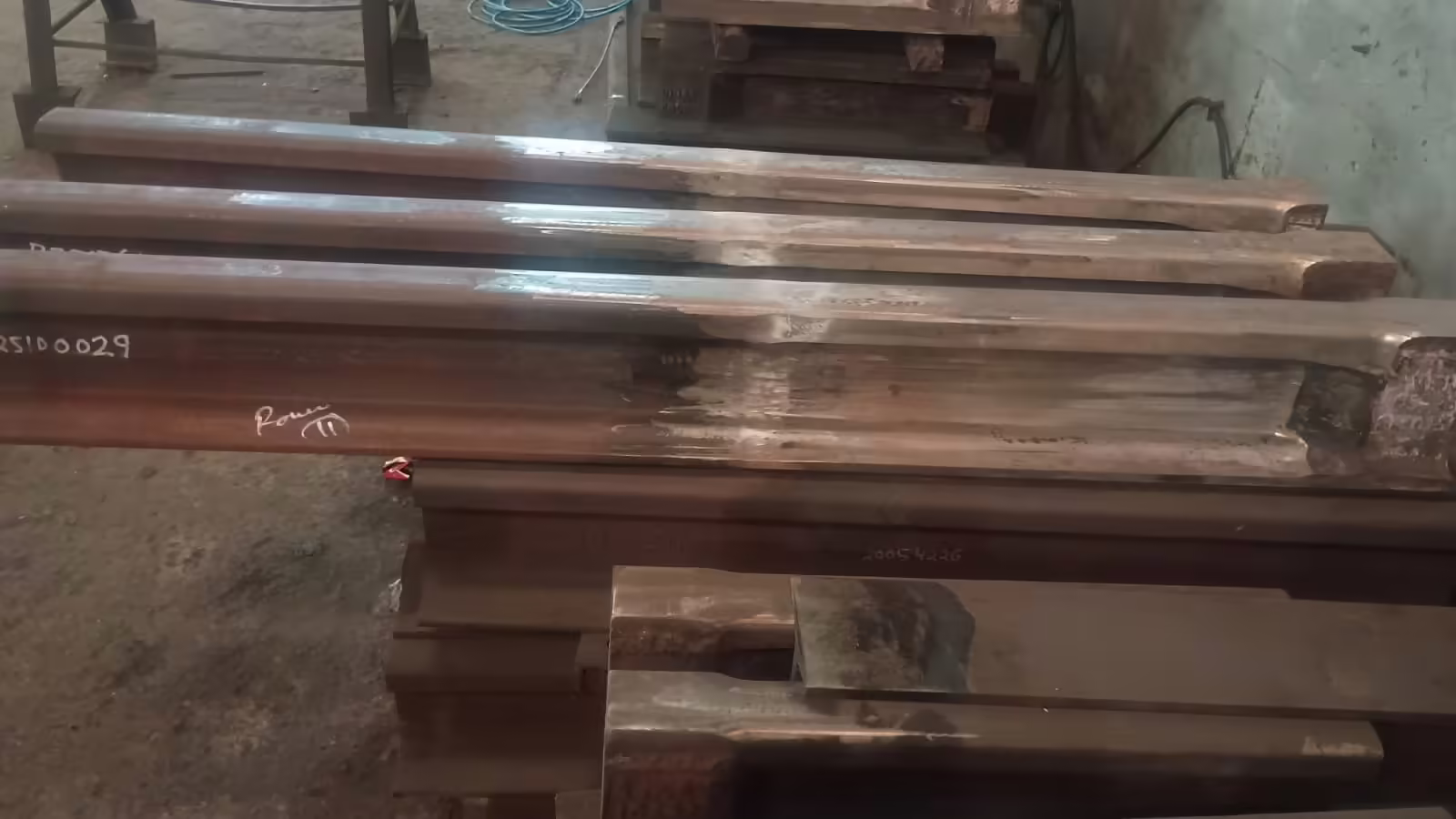

The testing protocol requires preparing weld samples under conditions simulating actual field welding—using the same materials, welding procedures, heat inputs, and post-weld treatments that field welds receive. This realistic preparation ensures test results represent actual field weld performance rather than optimized laboratory samples that might show better properties than production welds achieve. For WCMS crossing welds to R-260 rails, this means welding actual crossing components to rail sections using the proposed field welding procedure, complete with any preheat, interpass temperature control, and post-weld heat treatment the procedure specifies.

Sample preparation from the welded joint follows specific requirements ensuring the weld zone experiences maximum stress during fatigue testing. The weld must be located at the sample's center where bending stress concentrates during four-point loading. Sample dimensions—typically 1000mm length for the test setup—enable proper support point spacing that creates the specified stress distribution across the weld zone.

The 5 Million Cycle Test That Proves Weld Durability

The heart of IRS:T-29 testing involves subjecting weld samples to 5 million cycles of oscillating load between specified maximum and minimum values at frequencies between 8.33-9.0 Hz. TCR Engineering conducts this testing at room temperature using a 1000 kN capacity UTM (Universal Testing Machine) in dynamic mode, applying loads up to 60% of machine capacity (600 kN maximum) at the specified frequency. These aren't arbitrary numbers—they represent careful engineering analysis of actual railway loading conditions translated into accelerated laboratory testing that compresses decades of service exposure into weeks of continuous cycling.

The loading scheme for R-260 grade rail welds in UIC 60kg and similar profiles specifies maximum loads of 300 kN and minimum loads of 30 kN—creating a stress range and mean stress that simulates actual service loading from train axles. TCR's 1000 kN dynamic UTM easily handles these loads while operating well within the 60% capacity limit that ensures reliable high-frequency operation. The 10:1 ratio between maximum and minimum load (R-ratio of 0.1) represents partially reversed loading typical of rails in bending under passing wheel loads, as opposed to fully reversed loading (R=-1) that some fatigue applications experience.

The frequency range of 8.33-9.0 Hz enables completing 5 million cycles in reasonable testing duration—at 9 Hz, 5 million cycles requires approximately 154 hours of continuous testing, roughly 6-7 days of 24/7 operation. This frequency is slow enough that dynamic effects and specimen heating from cyclic deformation don't significantly affect results, yet fast enough that testing completes in timeframes compatible with weld procedure qualification schedules. The tension-compression loading mode creates the alternating tensile and compressive stresses that weld zones experience in service as trains pass overhead.

Mr. Tambewagh emphasizes that proper test execution requires more than just operating the fatigue testing machine. The four-point bending setup must be configured precisely with correct support spacing ensuring the weld zone experiences maximum bending moment. Load alignment must be verified preventing out-of-plane loading that would invalidate results. Load cells and displacement transducers must be calibrated ensuring accurate load application and deformation measurement throughout the multi-day test duration.

Monitoring during testing watches for crack initiation and propagation, excessive deflection indicating loss of stiffness, or anomalous behavior suggesting equipment malfunction or specimen problems. Modern servo-hydraulic testing systems like those TCR operates can automatically pause testing if loads drift outside tolerance, preventing wasted effort on tests with invalid loading conditions.

Acceptance Criteria: What Defines Success or Failure

IRS:T-29's acceptance criteria go beyond simple "survived 5 million cycles" pass/fail determination. The standard specifies that test samples shall not develop cracks on the surface which may be shear, flexural, or torsional rupture due to local buckling in nature. This criterion recognizes that different crack types indicate different failure mechanisms—some acceptable, others problematic.

Hairline localized cracks may be permissible provided there is no reduction in load-carrying capacity. This tolerance acknowledges that minor surface cracks don't necessarily compromise structural integrity if they don't propagate or affect the specimen's ability to sustain design loads. The distinction between acceptable hairline cracks and unacceptable propagating cracks requires expert judgment that experienced personnel like Mr. Tambewagh's team provide.

The prohibition on cracks causing reduced load-carrying capacity gets verified through monitoring during testing. If cyclic loading causes progressive cracking that reduces specimen stiffness—observable as increasing deflection under constant load amplitude—the sample fails even if complete fracture hasn't occurred. This criterion prevents approving welds that might survive 5 million cycles in controlled laboratory testing but would progressively degrade in service through crack growth that eventually leads to field failures.

The acceptance of three samples selected from eleven prepared welds introduces statistical validation ensuring the welding process produces consistent results rather than occasional good welds among variable quality production. Testing only the three best-looking welds would provide optimistic results not representative of typical field weld quality. Random selection from a larger sample set better represents actual production variability.

WCMS Crossings and R-260 Rails: A Challenging Material Combination

The specific application of WCMS crossing welds to R-260 grade rails presents technical challenges that make fatigue testing particularly critical. Weldable Cast Manganese Steel crossings offer exceptional wear resistance and work-hardening characteristics that extend service life in the harsh impact and abrasion environment that railway crossings experience. R-260 grade rails provide high strength (260 kg/mm² ultimate tensile strength) enabling heavy axle loads and high-speed operation.

Welding these dissimilar materials creates metallurgical challenges. Manganese steel and rail steel have different thermal expansion coefficients—creating residual stresses during weld cooling as materials contract at different rates. The heat-affected zones in each material respond differently to welding thermal cycles—potentially creating brittle or soft zones that compromise fatigue resistance. Dilution between the base materials can create intermediate compositions with properties inferior to either parent material.

These metallurgical challenges mean that weld procedure development for WCMS-to-rail connections requires careful optimization of welding parameters, filler materials, preheat and interpass temperatures, and post-weld treatments. The fatigue testing validates whether the optimized procedure actually produces welds with adequate cyclic loading resistance for railway service, or whether the metallurgical challenges have compromised fatigue performance despite acceptable static strength.

The Testing Arrangement: Four-Point Bending Configuration

The fatigue testing arrangement specified in IRS:T-29 employs four-point bending—a loading configuration that creates uniform bending moment across the central span between inner support points. This uniform moment region ensures the weld zone, located at specimen center, experiences maximum stress throughout testing rather than just at a single point as occurs in three-point bending.

The typical setup uses support span of approximately 1000mm with outer supports spaced wider than inner loading points. Load application through the two inner points creates downward force while outer supports provide reactions, generating the bending moment distribution that stresses the weld. The geometry ensures the weld experiences combined tensile and compressive stresses on opposite sides of the neutral axis—the same stress state that rails experience under train wheel loads.

Specimen ends extend beyond support points providing sufficient length for proper mounting without end effects influencing stress distribution in the test region. The flat specimen configuration, rather than testing full rail sections, enables standardized test equipment to accommodate the various rail profiles used across Indian Railways while maintaining consistent stress analysis and result interpretation.

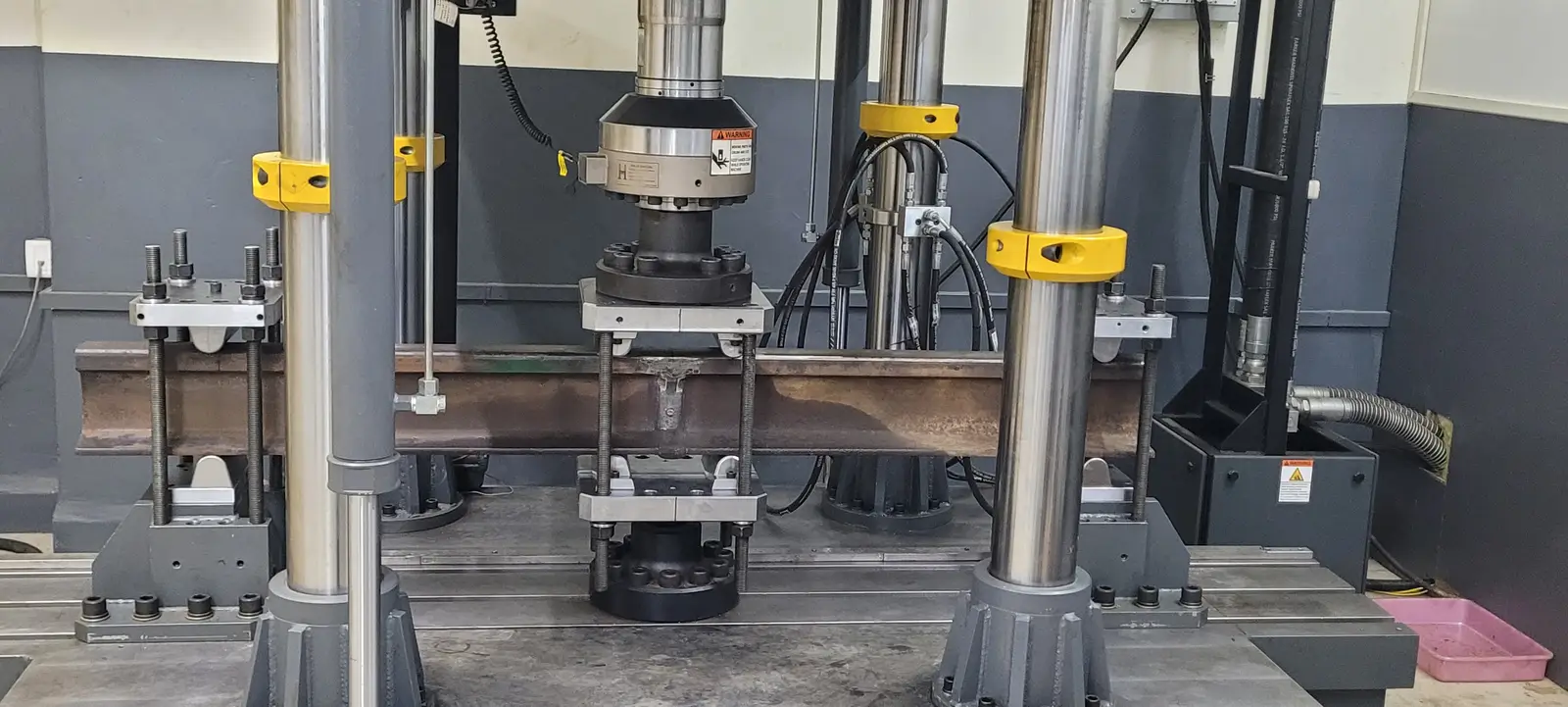

Fatigue testing setup for Rail Tracks

Real-World Implications: Why This Testing Matters

The connection between laboratory fatigue testing and railway safety might seem abstract until you consider the consequences of inadequate weld validation. Every welded crossing installation represents a potential failure point—and crossings are among the highest-stress locations on the railway network. A crossing failure under traffic doesn't just create maintenance headaches; it derails trains with potentially catastrophic results.

RDSO's requirement for fatigue testing before approving welding procedures reflects hard-learned lessons from field failures that occurred when welds approved based only on static testing proved inadequate for cyclic service loading. The 5 million cycle requirement represents approximate fatigue loading that critical welds might experience over design service life—catch problems in the laboratory rather than discovering them through field failures.

For welding procedure developers, the testing provides objective validation that optimized parameters actually deliver the fatigue resistance that railway service demands. For railway track engineers specifying welding procedures, RDSO-approved procedures with successful fatigue testing provide confidence that field welds will survive service loading. For TCR Engineering, providing RDSO-approved fatigue testing capability enables the railway supply chain to validate critical processes with the rigor that safety-critical applications require.

TCR's Testing Capability: Equipment and Expertise

Conducting IRS:T-29 fatigue testing requires servo-hydraulic testing systems capable of generating the loads that rail weld testing demands while maintaining precise load control through millions of cycles. TCR Engineering operates a 1000 kN capacity dynamic Universal Testing Machine specifically configured for high-cycle fatigue testing in tension-compression mode. This substantial capacity allows testing the 300 kN loads that R-260 rail weld testing requires while operating at only 30% of machine capacity—well within the 60% maximum loading limit that ensures reliable operation at the 8.33-9.0 Hz frequencies IRS:T-29 specifies.

The dynamic UTM provides precise load control with calibrated load cells ensuring accurate load application, displacement transducers monitoring specimen deflection throughout testing, and control systems maintaining specified loading frequency while compensating for specimen stiffness changes or environmental variations. The machine's capability to sustain continuous operation through 5 million cycles over 6-7 days demonstrates the robust design and maintenance that high-cycle fatigue testing demands.

It should be noted that while TCR's railway track fatigue testing follows RDSO's IRS:T-29 standard rigorously, this specific testing is not currently covered under the company's NABL accreditation scope. However, the testing follows the same quality management principles, equipment calibration protocols, and technical rigor that govern TCR's NABL-accredited activities, ensuring reliable results that RDSO recognizes and accepts for weld procedure approval despite the testing falling outside formal NABL scope.

The testing infrastructure extends beyond just the testing machine. Specimen preparation facilities machine samples to required dimensions with weld positioned exactly at specimen center. Surface preparation removes any artifacts from cutting or handling that might initiate premature cracking unrelated to weld quality. Dimensional inspection verifies specimens meet tolerances ensuring consistent stress distributions during testing.

Data acquisition systems record load, displacement, and cycle count throughout multi-day tests, documenting that loading remained within specification and detecting any anomalies that might invalidate results. Post-test examination includes visual inspection for cracks, microscopic examination of any crack-like indications determining whether they represent acceptable hairline cracks or unacceptable defects, and documentation with photographs supporting accept/reject determinations.

Mr. Tambewagh's expertise ensures testing addresses not just the procedural requirements that IRS:T-29 specifies but the practical realities that affect result validity and interpretation. Understanding how specimen alignment affects stress distribution, recognizing when apparent cracks represent manufacturing defects versus fatigue damage, knowing when test anomalies require repeating tests versus when results remain valid—these judgments separate competent testing from superficial compliance with written procedures.

The RDSO Approval Process and Its Significance

Achieving RDSO approval for conducting IRS:T-29 fatigue testing involves demonstrating to RDSO inspecting officials and representatives that TCR's facility, equipment, procedures, and personnel meet the standards required for railway-critical testing. This approval process isn't just paperwork—it includes facility audits, equipment capability demonstrations, procedure reviews, and personnel qualification verification.

The requirement that sample preparation occur in presence of RDSO representatives or inspecting officials ensures that specimens truly represent the welding procedure being qualified rather than specially prepared samples that might show better performance than production welds. This witnessed testing provides confidence that results reflect actual weld quality achievable in production rather than optimistic laboratory demonstrations.

For manufacturers seeking weld procedure approval from RDSO, testing at approved laboratories like TCR streamlines the approval process. Results from RDSO-approved testing facilities carry credibility that testing from unapproved laboratories might not provide, potentially eliminating questions about test validity or requirements for confirmatory retesting.

Beyond Pass/Fail: What Fatigue Testing Reveals

While IRS:T-29 testing provides binary pass/fail determination for weld procedure approval, the testing also generates valuable data about weld performance characteristics that inform procedure optimization and quality control. Observation of where cracks initiate—in weld metal, heat-affected zone, or parent material—reveals which zone limits fatigue resistance. Comparison of cycles to crack initiation versus cycles to complete failure indicates how rapidly cracks propagate once initiated.

Testing multiple samples from the same procedure batch reveals variability—do all samples show similar performance, or do some fail early while others survive easily? High variability suggests the welding procedure produces inconsistent weld quality requiring tighter process controls or parameter optimization. Consistent performance across all samples indicates robust procedure that reliably produces adequate welds.

When samples fail to meet acceptance criteria, post-test examination and analysis help identify root causes guiding procedure modifications. Metallographic examination might reveal coarse microstructure suggesting excessive heat input or slow cooling. Chemical analysis might show dilution creating compositions with poor fatigue resistance. Residual stress measurement might indicate inadequate post-weld heat treatment. These insights enable systematic procedure improvement rather than trial-and-error modifications hoping to stumble upon acceptable results.

The Broader Context: Fatigue Testing in Railway Infrastructure

Railway track weld fatigue testing represents one element of the comprehensive testing regime that ensures railway infrastructure reliability. Similar fatigue testing validates rail fastening systems, wheel sets, suspension components, and other critical elements experiencing cyclic loading throughout railway service life. The common thread across these applications is recognition that static strength alone doesn't ensure durability—cyclic loading creates failure mechanisms that only cyclic testing can detect.

The specific challenge of dissimilar material welds—joining WCMS crossings to rail steel—extends to other railway applications including thermit welds for plain rail joining, flash butt welds at rail plants, and welds for special trackwork including switches and expansion joints. Each application creates unique metallurgical challenges requiring validated welding procedures proven through fatigue testing following standards appropriate to the specific application.

RDSO's role establishing standards, validating procedures, and approving testing facilities creates the quality infrastructure that enables Indian Railways to safely operate the world's fourth-largest railway network. Laboratories like TCR Engineering, earning RDSO approval and maintaining the capability to conduct demanding testing like IRS:T-29 fatigue evaluation, provide the technical foundation supporting this infrastructure.

FAQs About Railway Track Fatigue Testing

Why is 5 million cycles the standard requirement for railway weld testing? The 5 million cycle requirement represents engineering analysis of typical fatigue loading that critical railway welds experience over their design service life. Heavy-traffic mainline tracks might experience this loading in several years, while lighter-traffic branch lines might take decades. The standardized cycle count provides consistent evaluation baseline across different applications while representing realistic service exposure.

What happens if a weld sample fails before completing 5 million cycles? Failure before reaching 5 million cycles means the welding procedure doesn't meet acceptance criteria and cannot be approved for field use. The weld procedure requires modification—changing parameters, filler materials, heat treatments, or other variables—followed by preparing new samples and repeating the testing. This iterative process continues until samples consistently survive the full 5 million cycles.

How does fatigue testing differ from tensile testing for weld qualification? Tensile testing measures static strength—the maximum load the weld can sustain during single loading to failure. Fatigue testing evaluates cyclic loading resistance—the ability to survive millions of lower-magnitude load cycles without crack propagation. Welds can pass tensile testing yet fail fatigue testing if the weld zone contains defects or microstructural features that initiate fatigue cracks even though static strength is adequate.

Can visual inspection detect the fatigue cracks that this testing prevents? Early-stage fatigue cracks are microscopic and undetectable through visual inspection. By the time cracks become visible, they've already propagated significantly and may be approaching critical size where sudden failure is imminent. Fatigue testing prevents field service of welds susceptible to cracking rather than detecting cracks after they've already initiated in service.

Why must sample preparation occur in presence of RDSO representatives? Witnessed sample preparation ensures that tested welds truly represent the procedure being qualified rather than specially prepared samples. Without witnessing, laboratories might optimize conditions during sample preparation creating welds better than typical production quality. RDSO witnessing provides confidence that test results reflect realistic field weld performance.

How long does complete IRS:T-29 fatigue testing take? The 5 million cycle test at 8.33-10 Hz requires approximately 6-7 days of continuous testing per sample. Testing three samples sequentially takes roughly 3 weeks, though testing can sometimes proceed in parallel on multiple machines. Including sample preparation, setup, and post-test examination, complete testing from procedure submission to final results typically requires 4-6 weeks.

Does TCR test only WCMS crossing welds, or other railway welding applications? While the specific example involves WCMS crossing welds to R-260 rails, TCR's IRS:T-29 testing capability extends to other railway welding applications requiring fatigue validation including thermit welds, flash butt welds, and special trackwork connections. The testing protocols adapt to specific applications while following IRS:T-29 requirements.

What documentation does TCR provide after completing fatigue testing? Test reports document sample preparation details, welding procedure parameters, test setup configuration, loading scheme and frequency, complete cycle count records, crack observations or measurements, accept/reject determination against IRS:T-29 criteria, and photographs supporting conclusions. This comprehensive documentation supports weld procedure submissions to RDSO for approval.

Railway track fatigue testing per RDSO's IRS:T-29 standard represents critical validation ensuring that welded connections in India's vast railway network—particularly challenging applications like Weldable Cast Manganese Steel crossing welds to R-260 grade rails—possess the cyclic loading resistance to survive decades of service carrying billions of passengers and millions of tonnes of freight without the catastrophic failures that inadequate welds create when microscopic cracks initiate in weld zones and propagate through millions of load cycles from passing trains until sudden fracture occurs under loaded consists. TCR Engineering's RDSO-approved capability for conducting this demanding 5 million cycle testing, led by Technical Head Avinash Tambewagh's expertise in fatigue testing methodology and result interpretation, provides the railway supply chain with essential validation that weld procedure approvals rest on objective evidence of adequate fatigue resistance rather than assumptions that static strength ensures durability or hope that visual inspection will detect problems before field failures occur. From the servo-hydraulic testing systems that apply precisely controlled cyclic loads through millions of repetitions to the four-point bending fixtures that create uniform stress distribution across weld zones to the calibrated instrumentation monitoring load and deflection throughout multi-day tests, TCR's testing capability delivers the rigorous evaluation that India's Ministry of Railways demands before approving welding procedures for implementation across the network where the difference between welds validated through proper fatigue testing and those qualified based only on static testing literally determines whether crossings survive their design life or fail unexpectedly under traffic creating the derailments, casualties, and service disruptions that proper testing exists to prevent.
