TCR Engineering runs salt spray testing to ISO 9227 at its Mahape laboratory in Navi Mumbai, India, where the test is on NABL certificate NABLT0726MH18640 alongside ASTM B117, IS 6910 acetic acid salt spray and ASTM B368 CASS. The product specification sets the exposure hours and the acceptance criterion, and NSS hours do not convert to AASS hours.
- ISO 9227 salt spray test: on the NABL scope at Mahape, Navi Mumbai
- Also on the scope: ASTM B117, IS 6910 acetic acid salt spray and ASTM B368 CASS
- Exposure hours and pass criterion: set by the product or OEM specification
- NSS to AASS: no universal conversion factor
Accelerated corrosion testing is one of those testing disciplines that often gets underestimated until a product fails in the field. Whether you are specifying surface coatings for automotive components, validating protective finishes on industrial hardware, or ensuring compliance on imported metal parts, a poorly executed salt spray test can leave you with results that do not reflect real-world performance at all.
This article explains how accelerated corrosion tests work, what ISO 9227 actually requires, and what engineering teams in India need to get right before sending their samples to a testing lab. It also addresses a question that comes up repeatedly: when a component is rated for 2000 hours in a Neutral Salt Spray (NSS) test, what does that translate to in an Acetic Acid Salt Spray (AASS) test?
TCR Engineering, with materials testing experience across India since 1973, regularly handles exactly these kinds of queries from engineers, procurement heads, and QA/QC professionals.
What is Accelerated Corrosion Testing and Why Does It Matter?
Corrosion does not wait for a scheduled inspection. It begins the moment a metal surface is exposed to moisture, salt, or chemical contaminants. In real-world environments, this degradation may take months or years to become visible. Accelerated corrosion testing compresses that timeline artificially, so engineers can evaluate material performance in days or weeks rather than years.
The most widely used standard for this purpose is ISO 9227, which covers three primary test methods:
- Neutral Salt Spray (NSS), a baseline exposure using a 5% sodium chloride solution at 35°C
- Acetic Acid Salt Spray (AASS), a more aggressive test where the solution is acidified with acetic acid, lowering the pH to between 3.1 and 3.3
- Copper-Accelerated Acetic Acid Salt Spray (CASS), the most aggressive variant, used primarily for decorative and electroplated finishes
The choice of test method depends on the material, the coating type, and the end-use environment. What matters most is that the test is carried out correctly, under controlled conditions, and interpreted properly. A number on a test report means very little if the test setup was wrong.
ISO 9227 Explained: The Standard Behind Salt Spray Testing
ISO 9227 is an international standard that specifies the apparatus, reagents, and procedure for creating and maintaining a salt spray (fog) environment in a test chamber. The standard does not specify how long a given product should be tested: that is determined by the product specification, the OEM requirement, or a relevant industry standard.
Key parameters defined under ISO 9227 include:
- Chamber temperature: 35°C ± 2°C for both NSS and AASS
- Salt solution concentration: 50 g/L ± 5 g/L sodium chloride in distilled or deionised water
- pH of collected solution: 6.5 to 7.2 for NSS; 3.1 to 3.3 for AASS (measured at 25°C)
- Fog collection rate: 1.0 to 2.0 mL/h per 80 cm² of horizontal collection area
- Specimen positioning: 15° to 30° from vertical, to ensure uniform exposure and drainage
These are not optional guidelines. They are minimum conditions for a result to be considered ISO 9227 compliant. Any deviation from these parameters compromises the validity of the test. This is why the choice of testing laboratory matters as much as the test itself.
NSS vs AASS: Understanding the Difference in Corrosion Severity
This is a question TCR Engineering receives regularly from engineers evaluating surface treatment performance. When a product specification says "2000 hours NSS," what does that mean in terms of AASS exposure?
The short answer: there is no universal conversion factor between NSS and AASS hours. The two tests use chemically different environments. AASS is more aggressive because the acidified solution attacks the coating faster. Industry guidelines differ on how much more aggressive AASS is than NSS for zinc-based coatings, and the ratio varies significantly based on:
- The type of base metal
- The coating system applied (galvanising, electroplating, powder coating, etc.)
- The thickness and adhesion quality of the coating
- The failure criteria being evaluated (red rust, white rust, blistering, etc.)
This is why a technically sound approach is to confirm the required AASS hours directly with the OEM, the product specification owner, or the relevant design standard. The testing laboratory's role is to execute the test as specified, not to reinterpret the specification.
Manoj Prabhakar Singh, Department Head, Corrosion Testing at TCR Engineering Services Pvt. Ltd., puts it clearly:
"When clients ask us to convert NSS hours to AASS hours, we always advise them to go back to the design specification. There is no single conversion formula that works across all coatings and base materials. The right approach is to test at the hours specified by the product owner, and if that is not defined, to align with the relevant industry standard before testing begins. Running the wrong test duration gives you a number, not an answer."
This distinction matters enormously in procurement and QA contexts. Approving a batch of components based on a misinterpreted test duration can lead to coating failures in service, warranty claims, and reputational damage.

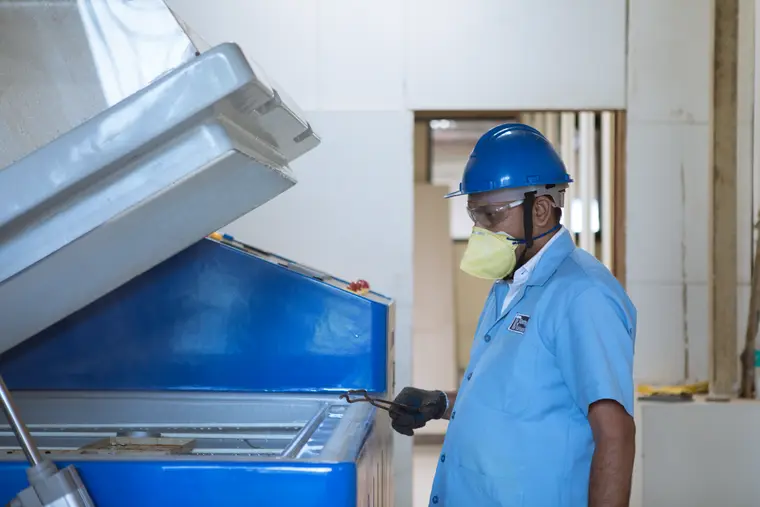

How TCR Engineering Conducts AASS Testing as per ISO 9227
TCR Engineering's Accelerated Corrosion Testing facility is equipped to carry out Acetic Acid Salt Spray (AASS) testing as per ISO 9227. The facility operates under controlled conditions with regular calibration and verification checks that support traceability and repeatability of results.
Standard Test Parameters for AASS (ISO 9227)
- Chamber Temperature: 35°C as per ISO 9227
- Solution pH: 3.1 to 3.3 (at 25°C), achieved by adding acetic acid to the sodium chloride solution
- Salt Solution: 50 g/L sodium chloride in reagent-grade water
- Fog Collection Rate: Monitored continuously, maintained between 1.0 and 2.0 mL/h per 80 cm²
- Test Duration: As specified by the client's product requirement or OEM specification
A Note on Humidity Control
It is worth clarifying a common point of confusion: ISO 9227 salt spray tests (NSS and AASS) are fog-based tests conducted in an enclosed salt spray chamber. They are not cyclic corrosion tests. Relative humidity as an independently controllable variable is not applicable to this test method. If your product specification requires a cyclic test with defined humidity stages, that would fall under a different standard such as ISO 11997 or VDA 233-102. TCR Engineering can advise on the appropriate test method based on your product's specification.
Common Mistakes Engineers Make When Specifying Corrosion Tests
After decades of handling corrosion test requests from across the Indian manufacturing and infrastructure sector, TCR Engineering has identified a set of recurring mistakes that compromise test validity and decision-making.
1. Not Specifying the Failure Criterion
Salt spray tests need a defined pass/fail criterion. Is the test looking for first signs of red rust? White corrosion products? Blistering of the coating? Delamination? Without this, a test result is just an observation with no actionable conclusion. Always confirm the failure criterion before testing begins.
2. Assuming NSS and AASS Results Are Interchangeable
NSS and AASS use different chemistries and produce different degradation mechanisms. A product that passes 500 hours NSS may fail well before 500 hours in AASS, depending on the coating. These tests cannot be substituted for each other without understanding the chemistry involved.
3. Not Confirming Sample Preparation Requirements
Uncoated cut edges or drilled holes on test specimens can produce premature corrosion that distorts the result. ISO 9227 and most product standards specify how edges should be sealed or protected before testing. This step is frequently overlooked, especially when samples are submitted by procurement teams rather than engineering teams.
4. Treating Salt Spray as the Only Corrosion Test Needed
Salt spray tests measure a component's resistance to a specific artificial environment. They do not replicate real-world corrosion exposure, which involves temperature cycling, UV, moisture, and mechanical stress simultaneously. Engineers should use salt spray test results as one input in a broader corrosion assessment, not as a complete picture.
Who Needs Accelerated Corrosion Testing in India?
The demand for ISO 9227 salt spray testing in India has grown steadily as manufacturing quality standards have tightened across sectors. Common use cases include:
- Automotive OEMs and Tier 1/Tier 2 suppliers: Validating surface coatings on fasteners, brackets, chassis components, and electrical connectors
- Construction and infrastructure: Testing galvanised and coated structural steel, rebar coatings, and hardware
- Consumer durables and appliances: Evaluating powder-coated and painted steel cabinets, brackets, and frames
- Defence and aerospace: Component and assembly qualification under stringent corrosion exposure requirements
- Importers and procurement teams: Third-party verification of coating quality before accepting incoming material
Why Work With TCR Engineering for Salt Spray Testing?
TCR Engineering Services Pvt. Ltd. has been providing materials testing, non-destructive testing, and asset integrity services across India since 1973. The corrosion testing facility is one of several specialist testing capabilities maintained by the organisation.
- Established testing infrastructure: Dedicated salt spray chambers for NSS and AASS testing, maintained in compliance with ISO 9227
- Technical clarity: Engineering teams available for pre-test consultation so that the right test method and parameters are applied
- Scheduling: the completion date is confirmed in the quotation; interim reports are available on request for long-duration tests
- Industry coverage: Serving clients across automotive, infrastructure, defence, consumer durables, and manufacturing sectors
For technical discussions on your specific corrosion testing requirement, write to sales@tcreng.com or use the contact page.
Frequently Asked Questions on ISO 9227 Salt Spray Testing
What is the difference between NSS, AASS, and CASS testing?
All three are salt spray methods under ISO 9227. NSS uses a pH-neutral sodium chloride solution and is the baseline method. AASS uses an acidified solution (pH 3.1 to 3.3), making it more aggressive. CASS additionally uses copper chloride to further accelerate corrosion and is used primarily for decorative and electroplated finishes.
How many hours of AASS equals 2000 hours of NSS?
There is no fixed conversion ratio. The relative aggressiveness depends on the coating type, base material, and failure criterion being evaluated. The correct approach is to confirm the required AASS duration with the OEM or product specification owner rather than applying a generic conversion.
What chamber temperature is used for AASS testing?
As per ISO 9227, AASS testing is conducted at 35°C (± 2°C). This is the same temperature used for NSS. The key difference is the pH of the test solution, not the temperature.
Does ISO 9227 salt spray testing include humidity control?
No. NSS and AASS are continuous fog tests in an enclosed chamber. Humidity as an independently controlled parameter is not part of these test methods. Cyclic tests with defined humidity phases require a different standard such as ISO 11997.
What materials and coatings are typically evaluated using AASS?
AASS is commonly used for anodised aluminium, electroplated components, zinc-based coatings, and organic coatings on ferrous metals. It is particularly relevant for products exposed to acid rain, industrial atmospheres, or coastal environments.
How should samples be prepared before salt spray testing?
Cut edges and drilled holes should be sealed as specified by the relevant product standard. Surfaces must be clean and free from grease. TCR Engineering's technical team can guide clients on preparation requirements during pre-test consultation.
Is ISO 9227 salt spray testing on the NABL scope at TCR Engineering?
Yes. The ISO 9227 salt spray test for metallic materials is on NABL certificate NABLT0726MH18640 at the TCR Engineering laboratory in Mahape, Navi Mumbai, together with ASTM B117 salt spray, IS 6910 acetic acid salt spray and ASTM B368 copper-accelerated acetic acid salt spray. The report states the standard, the exposure hours and the acceptance criterion the specification names.
How does ISO 9227 differ from ASTM B117?
Both standards create a continuous salt fog in a closed chamber. ASTM B117 describes the neutral salt spray test only, while ISO 9227 carries three variants: neutral salt spray, acetic acid salt spray and copper-accelerated acetic acid salt spray. Neither standard sets the exposure hours; the product specification does, and the test follows the standard that specification names.
