An ultrasonic pulse velocity (UPV) test measures the transit time of an ultrasonic pulse through hardened concrete; the velocity it gives shows the concrete's uniformity and any internal voids, honeycombing or cracks. TCR Engineering, Navi Mumbai, runs UPV on site across India to IS 516 (Part 5/Sec 1), a test on its NABL site scope under certificate NABLT0726MH18640.
- What it shows: uniformity, voids, honeycombing and cracking in the section; UPV does not give compressive strength on its own.
- Accredited route: IS 516 (Part 5/Sec 1), which superseded IS 13311 (Part 1), as site testing under NABL certificate NABLT0726MH18640.
- Also run to: ASTM C597 and BS EN 12504-4, reported outside the NABL scope.
- Where it sits: with GPR, rebound hammer and half-cell potential in structural audits and on GPR and UPV subsurface surveys.

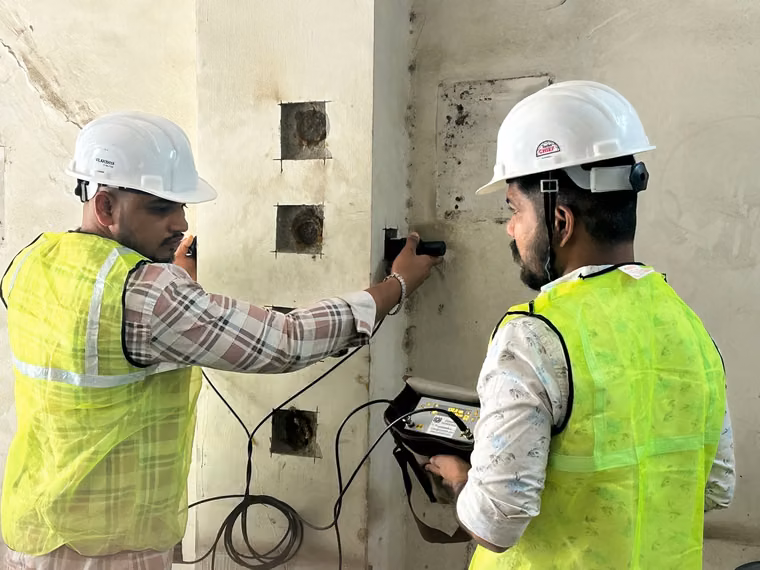

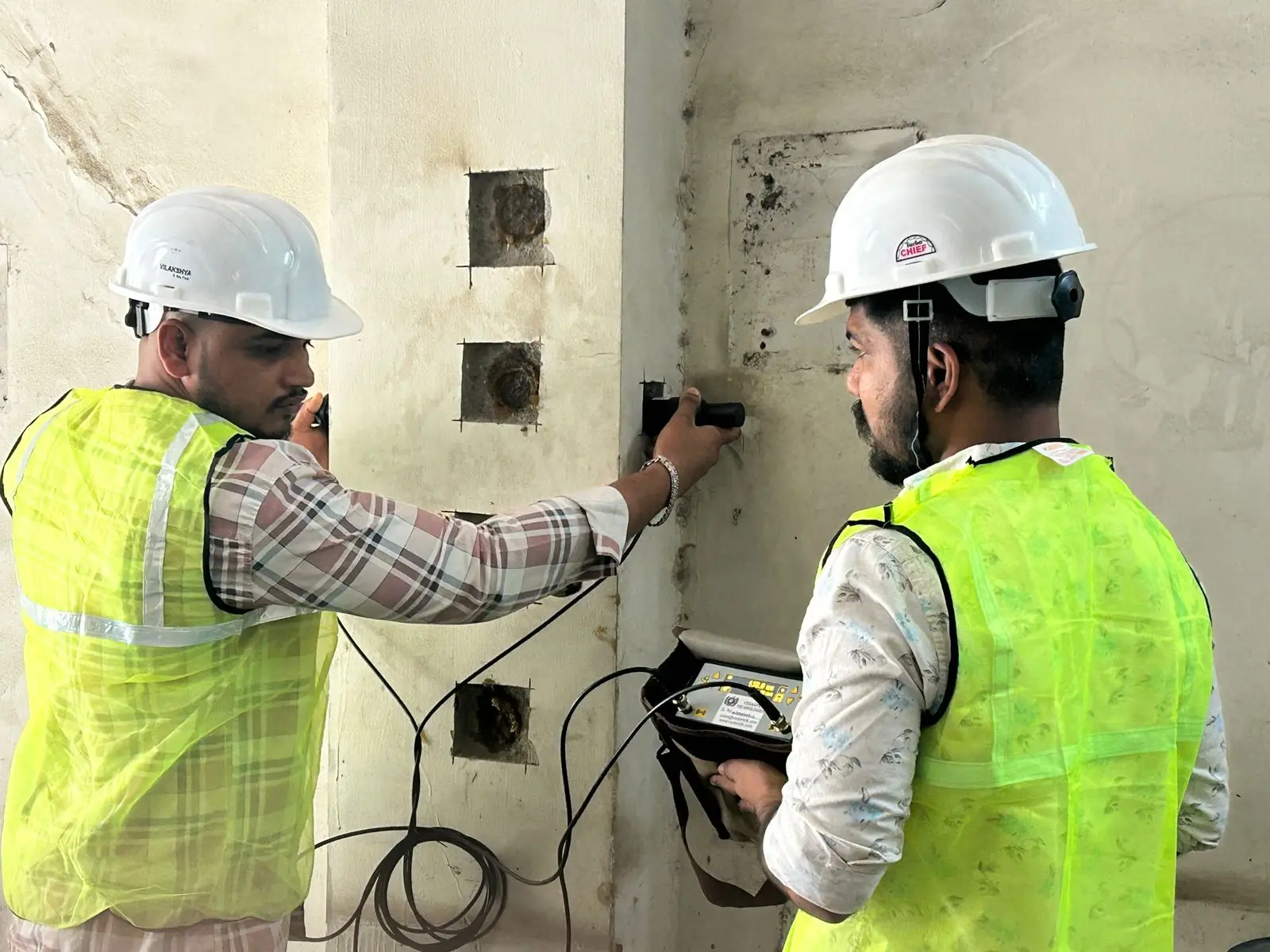

Ultrasonic Pulse Velocity (UPV) testing is a cornerstone of modern civil engineering practices. This non-destructive testing method is vital for evaluating the quality, uniformity, and structural integrity of concrete. TCR Engineering, a materials testing laboratory, offers on-site UPV testing services to assess the reliability and longevity of your concrete structures.
Understanding UPV Testing
UPV measures the velocity of ultrasonic pulses as they travel through concrete. It is instrumental in detecting potential flaws such as cracks, voids, and segregation within the material, providing critical insights into its internal condition without causing damage.
Key Standards for UPV Testing
TCR Engineering tests UPV to these standards; IS 516 (Part 5/Sec 1) is the route on its NABL site scope:
- ASTM C597-22: Standard Test Method for Pulse Velocity Through Concrete.
- BS EN 12504-4:2021: European Standard for determining ultrasonic pulse velocity in concrete.
- IS 516: Part 5: Sec 1: 2018: Indian Standard for non-destructive testing of concrete.
Principle Behind UPV Testing
The test operates on a straightforward principle: the propagation of high-frequency sound waves (ultrasonic pulses) through concrete. The velocity of these pulses depends on the material's properties, such as density, elasticity, and internal structure.
The pulse velocity is calculated using the formula:
V=L/T
Where:
- V = Pulse velocity (m/s or ft/s)
- L = Path length (distance between transmitter and receiver) (m or ft)
- T = Time taken for the pulse to travel through the material (s)
Factors Influencing Pulse Velocity
Several factors affect the pulse velocity, providing valuable insights into the material's condition:
- Concrete Quality: High-quality concrete yields higher velocities due to its uniformity and fewer defects.
- Density: Denser materials exhibit faster pulse velocities.
- Moisture Content: Wet concrete may have slower pulse velocities compared to dry concrete.
- Temperature: Changes in temperature can influence the propagation of sound waves.
- Cracks and Voids: Internal discontinuities result in reduced pulse velocities.
Interpreting UPV Results
- High Pulse Velocity: Indicates sound concrete with minimal internal defects.
- Low Pulse Velocity: Suggests poor concrete quality, potentially due to voids, cracks, or other discontinuities.
Advantages of UPV Testing
UPV testing offers several benefits for assessing concrete structures:
- Non-Destructive: Ensures the material remains intact during testing.
- Coverage: Enables large-scale testing efficiently.
- Internal Defect Detection: Identifies internal flaws not visible on the surface.
- Portable Equipment: Facilitates testing in diverse environments, including field locations.
Applications of UPV Testing by TCR Engineering
TCR Engineering uses UPV testing for:
- Evaluating the quality of concrete in existing structures.
- Assessing structural integrity during construction.
- Identifying potential flaws to support maintenance and repair strategies.
Conclusion
Ultrasonic Pulse Velocity testing is a non-destructive way to check the soundness and uniformity of concrete structures. TCR Engineering's UPV testing helps engineers and construction professionals make data-driven decisions about infrastructure maintenance and performance. With our current-generation technology and adherence to global standards, we work to the precision and reliability the standards require.
For more information on UPV testing or to schedule an assessment, contact TCR Engineering today. Let us build stronger, safer structures together!
FAQ
What does an ultrasonic pulse velocity test show?
UPV reports how uniform hardened concrete is and where its internal discontinuities lie. A low velocity along a path points to voids, honeycombing, cracking or poor compaction, while consistent velocities indicate sound, uniform concrete. UPV does not give compressive strength on its own: a core, or a rebound hammer survey correlated to cores, is needed for that.
Is IS 13311 Part 1 still the standard for UPV in India?
No. The Bureau of Indian Standards has superseded IS 13311 (Part 1) with IS 516 (Part 5/Sec 1):2018 for ultrasonic pulse velocity testing of hardened concrete. TCR Engineering's NABL site scope carries UPV to IS 516 (Part 5/Sec 1), so a specification that still cites IS 13311 (Part 1) should be brought up to the current standard.
Is UPV testing by TCR Engineering NABL accredited?
Yes, to IS 516 (Part 5/Sec 1), as site testing under NABL certificate NABLT0726MH18640. Readings taken to ASTM C597 or BS EN 12504-4 are reported outside the NABL scope, and the report states which standard each reading was taken to, so a buyer can see which results carry the accreditation.
